Body Electronics Automotive Connector Solutions
Automotive Lighting Connectors

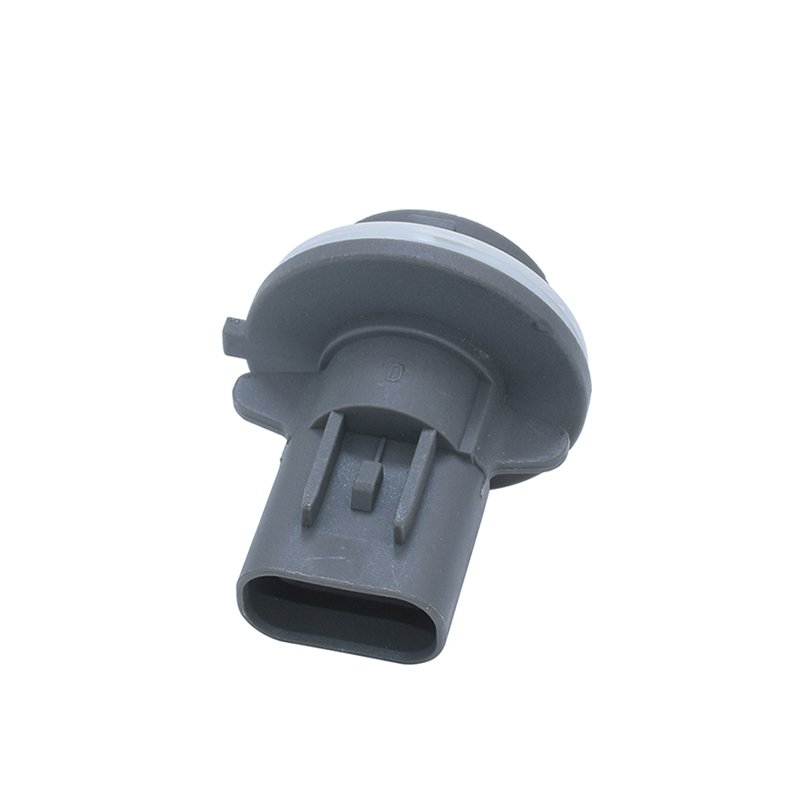

Fog Light Connectors
We provide sealed male 2 Pin Fog Light Connectors featuring high-performance PBT housings, designed for reliable operation in temperatures ranging from -40°C to 120°C. The sealed waterproof structure helps protect against dust and moisture, making them ideal for automotive fog light wiring harness connections and well-suited for vehicle body lighting systems.
Tail Light Connectors
Made with a durable PBT housing, this 5 Pin Sealed Automotive Tail Light Connector features a waterproof sealing structure to ensure stable and reliable connections for automotive tail light wiring harnesses. Its dustproof and moisture-resistant design helps protect electrical connections and makes it ideal for automotive rear lighting assemblies.
Front Light Connectors
Designed to provide stable and reliable connections for automotive headlight wiring harnesses, this connector features a durable PBT plastic housing and supports an operating temperature range of -40°C to 120°C. With an IP67-rated sealing structure, it offers protection against water, dust, and moisture, making it suitable for demanding automotive lighting applications.
Wiper Motor Connectors
40 Pins Male Right Angle Wiper Motor Pin Header
The 40 Pin Male Right-Angle Wiper Motor Connector features a wire-to-board PCB mounting design and a fully shrouded sealing structure for reliable protection. With an operating temperature range of -40°C to 120°C, it is designed for wiper motor control circuits, providing stable wire-to-PCB connections for automotive windshield wiper assemblies. The reliable connection helps support consistent wiper operation and contributes to maintaining clear visibility for the driver.
DEUTSCH DRC Compatible Replacement Series
Designed as a high-quality compatible replacement for DEUTSCH DRC connectors, this series is developed to deliver comparable performance and reliability at a more competitive price. It provides a cost-effective alternative for customers seeking reliable connector solutions without compromising on quality.
Door Control & Body Control Connectors
Multi-position sealed connectors for body and door electronic control applications.

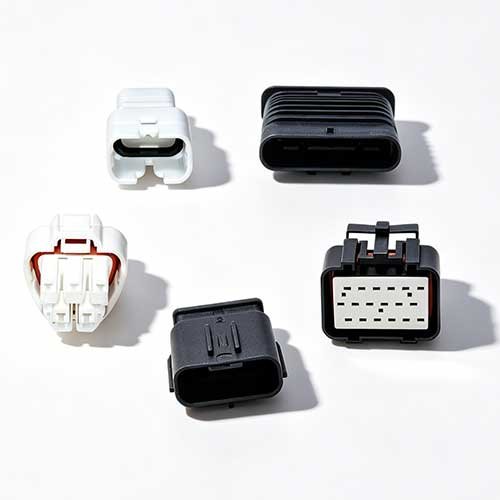

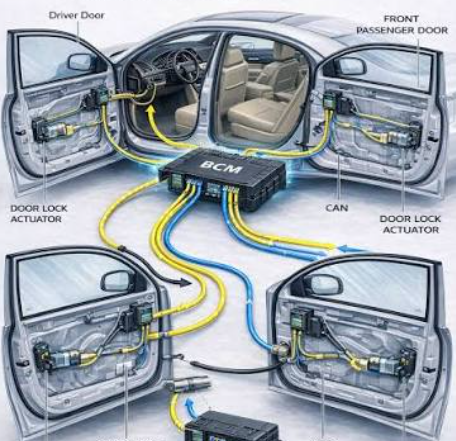

Door Control Systems
We provide high-quality automotive connectors designed for vehicle door control systems, supporting reliable power and signal transmission for door locks, door sensors, power mirror adjustment, anti-pinch windows, and other door electronics. Available in both sealed and unsealed versions, these connectors are designed for stable performance across an operating temperature range of -40°C to 120°C, helping ensure reliable electrical connections in automotive door applications.

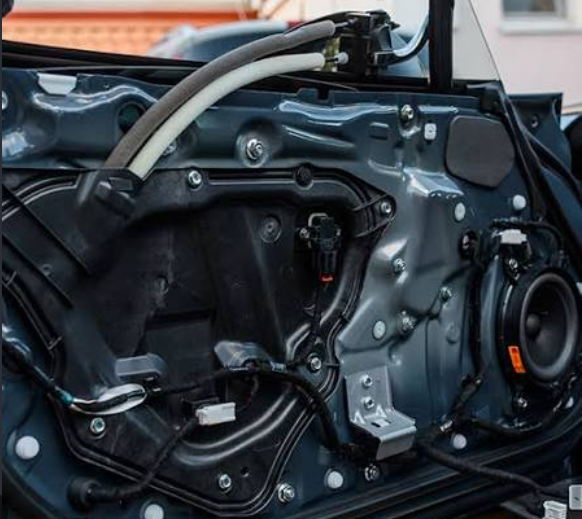

Door Module
Designed for automotive door control modules, this precision connector enables reliable connections for power window motors, central locking actuators, and door sensors. Its compact housing and strong vibration resistance ensure secure connections and stable electrical conductivity, making it well-suited for demanding automotive door control applications.

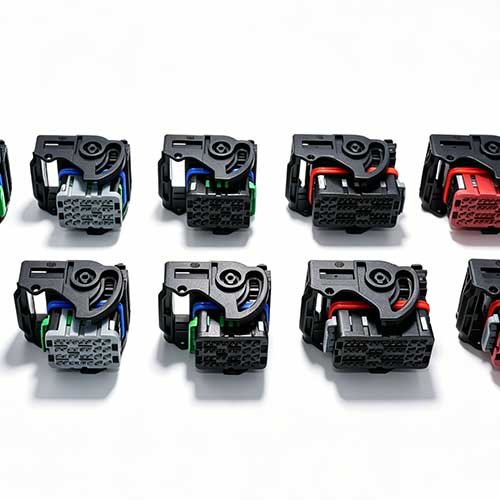

Body Control Module
Designed for automotive body control modules, this wire-to-board connector supports reliable connections for interior lighting, door locks, windshield wipers, anti-theft alarms, and other vehicle body electrical systems. It provides stable and secure connections for automotive body electronic control units, helping ensure reliable power and signal transmission.

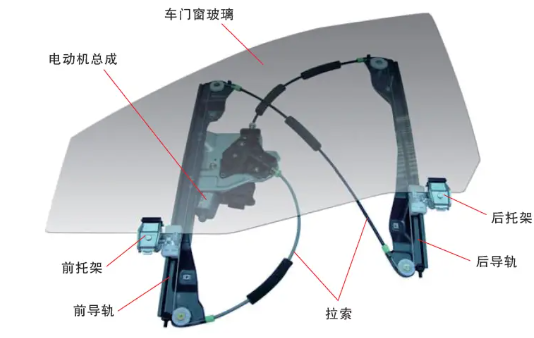

Window / Door Electrical Systems
Designed for the complete electrical systems of vehicle windows and doors, this connector supports reliable connections for power window motors, central locking systems, door lighting, and other electrical components. It enables simultaneous transmission of power and signals while offering excellent temperature and vibration resistance, helping ensure stable and reliable performance in automotive door applications.
Detailed Applications in Automotive Body Electronics

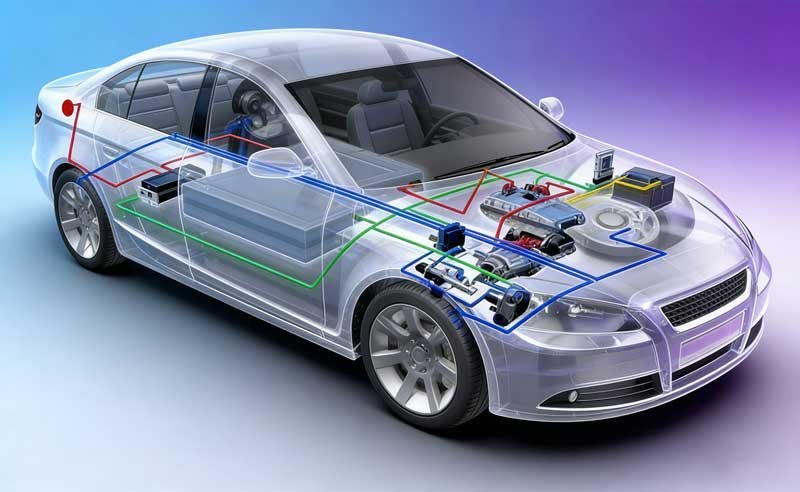

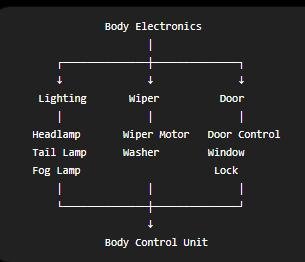

Based on our practical project experience in supplying automotive body connectors for complete vehicle systems, this architecture diagram clearly illustrates the actual operating logic of vehicle body electronics in real-world applications.
Automotive body electronics can generally be divided into three major application areas: lighting, wiper & washer systems, and door control systems.
Vehicle components such as headlights, tail lights, fog lights, wiper motors, washer spray components, power windows, and door locks all require connectors to interface with the Body Control Unit (BCU). The BCU centrally coordinates and manages these systems to control functions such as lighting on/off, windshield wiper operation, window movement, and door locking/unlocking.
This architecture represents a common design approach used in the body electronic control systems of most passenger vehicles, where connectors serve as a critical link between individual body electrical components and the central body control unit.
Designed for Automotive Body Electronics
Stable Electrical Connection
YUEQING CV Auto Parts Department selects terminal base materials according to different vehicle operating conditions, including copper alloy, brass, and phosphor bronze. The terminals can be customized with suitable contact structures and surface plating treatments to meet specific application requirements. With multiple pin configurations and wire-to-board designs available, our connectors ensure reliable connections between vehicle body control modules and wiring harnesses.
Secure Mating & Locking
Featuring a primary locking mechanism, secondary locking system, terminal retention, and a foolproof keying design, the connector is engineered with integrated male and female housing compatibility. This design minimizes the impact of external forces caused by vibration and other harsh vehicle operating conditions, ensuring smooth mating, secure locking, and stable terminal retention. It helps prevent connection failures caused by loosening, terminal displacement, or incorrect mating.
Sealed Protection
YUEQING QIYE AUTO PARTS CVCONNECTOR evaluates sealing requirements based on product installation location, exposure level, mating structure, wiring harness routing, and operating environment. We provide detailed parameter selection guidance to deliver suitable and high-quality connector solutions for applications such as vehicle doors, exterior mirrors, and external lighting systems.

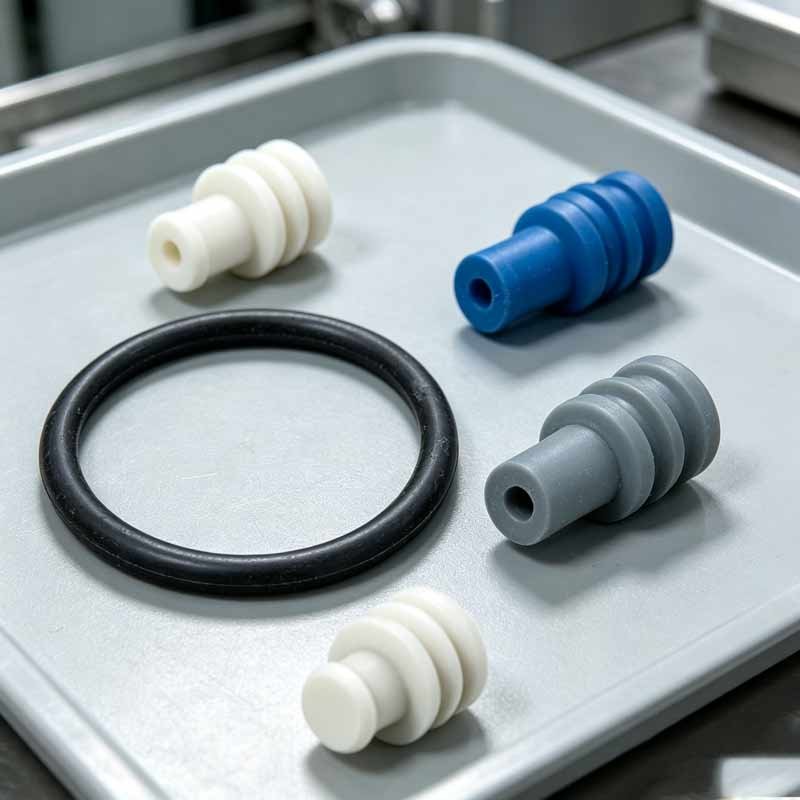

The sealing design also considers key elements including sealed housings, sealing rings, cable sealing, and protection of unused cavities, helping reduce the intrusion of external contaminants and prevent damage to electrical contact surfaces.
PCB & Wire-to-Board Options
The PCB mounting orientation creates a chain effect across the vehicle electrical system: PCB layout → wiring harness routing → assembly space → overall module size → vehicle wiring planning.
YUEQING QIYE AUTO PARTS CVCONNECTOR provides PCB Mount and Wire-to-Board connector solutions designed for automotive body module integration. As a critical electrical interface between PCB circuits and external wiring harnesses, our connectors are engineered to support PCB mounting requirements, wire-to-board configurations, mating directions, pin arrangements, and PCB space constraints, ensuring reliable integration and stable electrical performance within vehicle electronic modules.
Compact & Multi-Position Designs
The complete design logic follows: actual circuit quantity → signal/power load requirements → terminal specification matching → installation space constraints → PCB layout planning → final connector pin configuration determination.
We provide multi-pin, multi-structure, and multi-orientation automotive body electronics connector solutions tailored to specific application requirements. Based on customer module dimensions, wiring methods, and PCB layout constraints, we match the most suitable compact connector designs to achieve stable integration of multiple signal and power circuits within limited space, meeting the requirements of lightweight and high-density automotive body electronics assemblies.
Electrical Test
Waterproof Test
Terminal Retention
Mating Test
Dimensional Inspection
Find the Right Body Electronics Connector
You can provide the following available information:
- OEM Part Number
- Part Number
- Application
- Pin Count
- Connector Shape
- Sealing Requirement
How to Choose the Right Body Electronics Connector
Please select the appropriate connector solution according to the following requirements:
- Identify the Application：Lighting / Wiper / Door / Body Control
- Confirm Pin Count
- Check Connector Type：Wire-to-Wire / Wire-to-Board / PCB
- Confirm Sealing Requirements
- Match OEM Part Number or Drawing
Featured Body Electronics Connectors
We provide high-quality Body Electronics Connectors along with a complete range of accessories, including Wire Harnesses, Cavity Plugs, Terminals, Secondary Locks / TPAs, and other related components, offering comprehensive connector solutions for automotive body electronics applications.
40 Pin Wiper Motor Pin Header

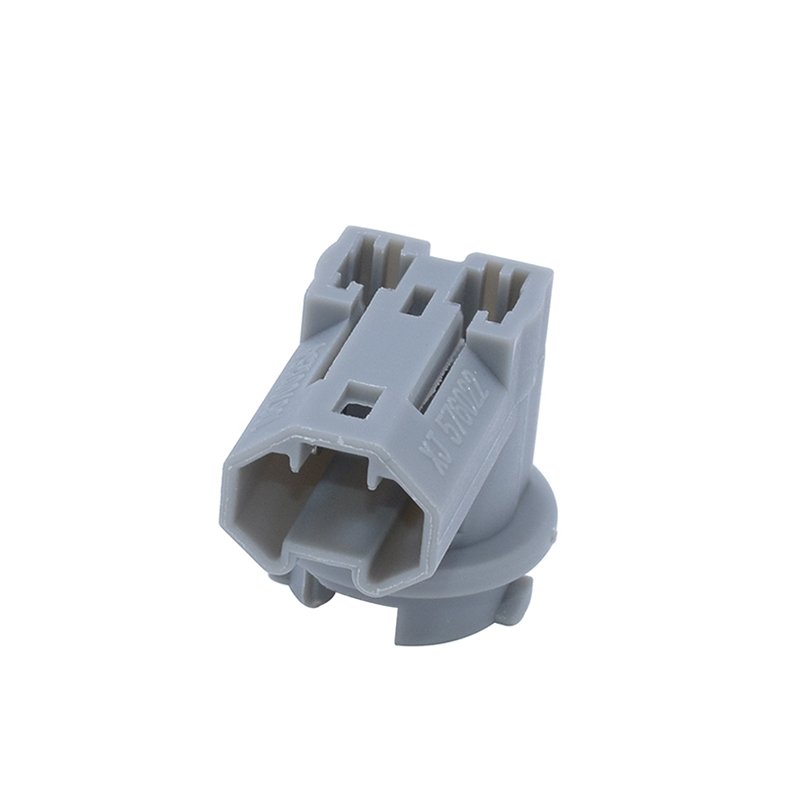

2 Pin Car Fog Light Connector

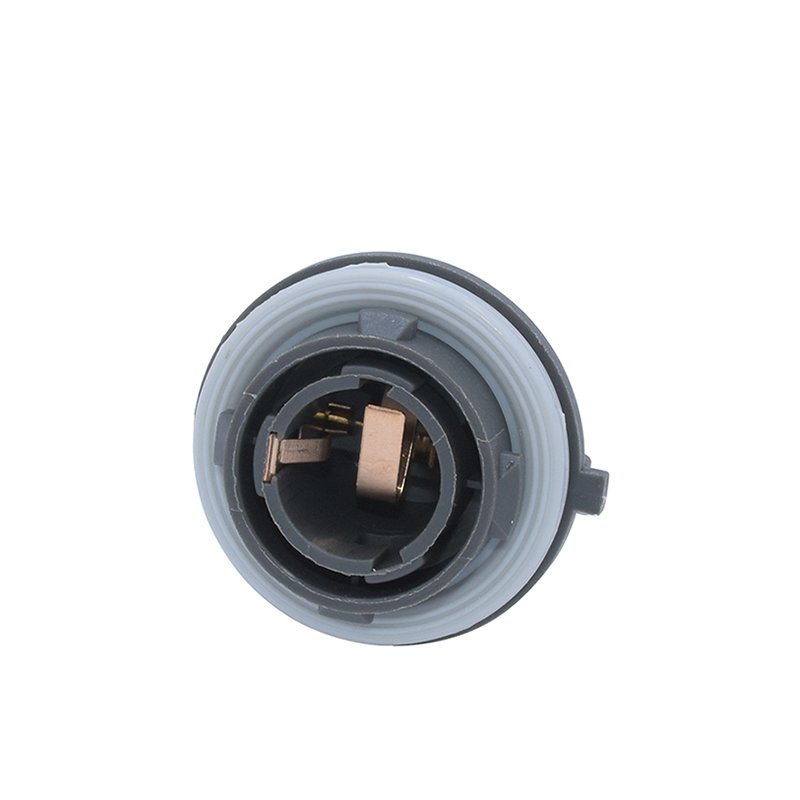

5 Pin Tail Light Plug
3 Pin Front Light Connector
18 Pin Door Control Systems Connector
Housing
Terminal
Seal

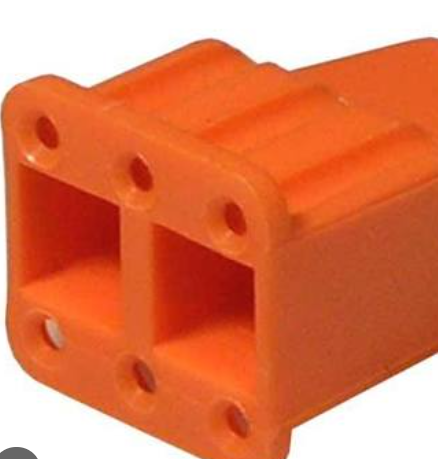

Secondary Lock

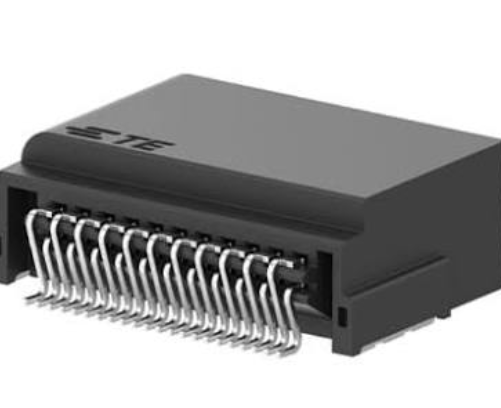

PCB Header
Mating Connector
Electrical Test
Waterproof Test
Terminal Retention
Mating Test
Dimensional Inspection
Frequently Asked Questions About Automotive Crankshaft Sensor Connector
Body electronics automotive connectors are electrical connectors used to link vehicle body electronic systems, control modules, sensors, actuators and wiring harnesses. They achieve reliable power delivery and signal communication among components including lighting systems, door modules, wiper motors, window systems and the Body Control Module (BCM).
Body electronics connectors are widely used in vehicle systems that control comfort, safety, and external electrical functions, including:
- Automotive lighting systems, such as headlamps, tail lamps, and LED lighting modules
- Door control systems, including power windows, door locks, and mirror systems
- Wiper and washer systems
- Body Control Module (BCM) connections
- Interior electronic components
- Sensor and actuator wiring systems
These connectors help ensure reliable communication between vehicle control units and electronic components.
YUEQING QIYE AUTO PARTS CVCONNECTOR provides automotive lighting connectors designed for applications including:
- Headlight connectors
- LED lighting connector
- Tail lamp connectors
- Fog lamp connectors
- Interior lighting connectors
YUEQING QIYE AUTO PARTS CVCONNECTOR provides automotive lighting connectors designed for applications including:
Yes. YUEQING QIYE AUTO PARTS CVCONNECTOR provides wiper motor connectors for windshield wiper systems.
Our wiper motor connectors are designed to provide:
Yes. YUEQING QIYE AUTO PARTS CVCONNECTOR supplies door control connectors for automotive door electronic systems, including:
- Waterproof seals
- Silicone or rubber gaskets
- Wire seals
- Cavity plugs
Yes. YUEQING QIYE AUTO PARTS CVCONNECTOR body electronics connectors can be designed with sealing structures according to application requirements.
Common sealing solutions include:
- Stable power transmission
- Reliable terminal contact
- Vibration resistance
- Protection against moisture and environmental conditions
Yes. YUEQING QIYE AUTO PARTS CVCONNECTOR provides customized body electronics connector solutions according to customer requirements.
Customization services include:
- Front and rear connector photos
- Terminal side images
- Connector dimensions
- Number of pins
- Vehicle model or application information (if available)
With integrated manufacturing capabilities for Housing, Terminal, Seal, and Wire Harness, YUEQING QIYE AUTO PARTS CVCONNECTOR supports automotive suppliers with complete connector solutions from design verification to mass production
Yes. Customers can send connector photos for identification and matching support.
To improve identification accuracy, please provide:
- Custom connector housing design
- Terminal development
- Seal customization
- Wire harness integration
- Pin configuration adjustment
- OEM application matching
Our team can analyze the connector structure and recommend suitable solutions.
