CV Chassis Connector Matching Solution
- IP67/IP68 waterproof automotive connectors can be provided upon request.
- Terminals, housings and sealing accessories can be equipped as required, delivering one-stop wiring harness solutions.
- ODM and OEM customized development services are available, covering custom pin layouts, current ratings, sealing grades, materials and more.
- Our full range of automotive products covers passenger vehicles, commercial vehicles, new energy electric vehicles, off-road vehicles and other vehicle types.
Your Leading Manufacturer of Chassis Automotive Connector – Your Ideal Partner.
If you need a complete wiring connector solution for various chassis systems, featuring ultra-low failure rate and high reliability under harsh working conditions, it fundamentally avoids safety hazards related to braking and driving caused by electronic control failure, terminal loosening due to bumping and vibration, infiltration and corrosion by muddy water and salt spray, electromagnetic and current interference, while greatly reducing after-sales repair and maintenance costs over the full life cycle of the whole vehicle. Our full CV series of automotive-grade chassis connectors can solve your current problems, covering all chassis circuit development requirements including ABS, wheel speed, suspension, chassis grounding, brake sensing and more, and compatible with the development of all types of complete vehicles.

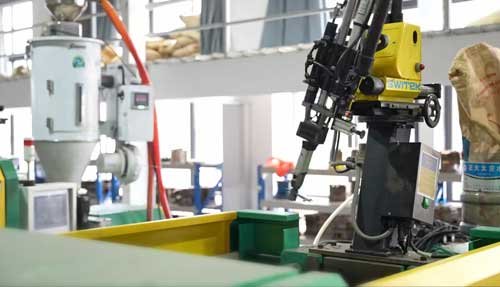

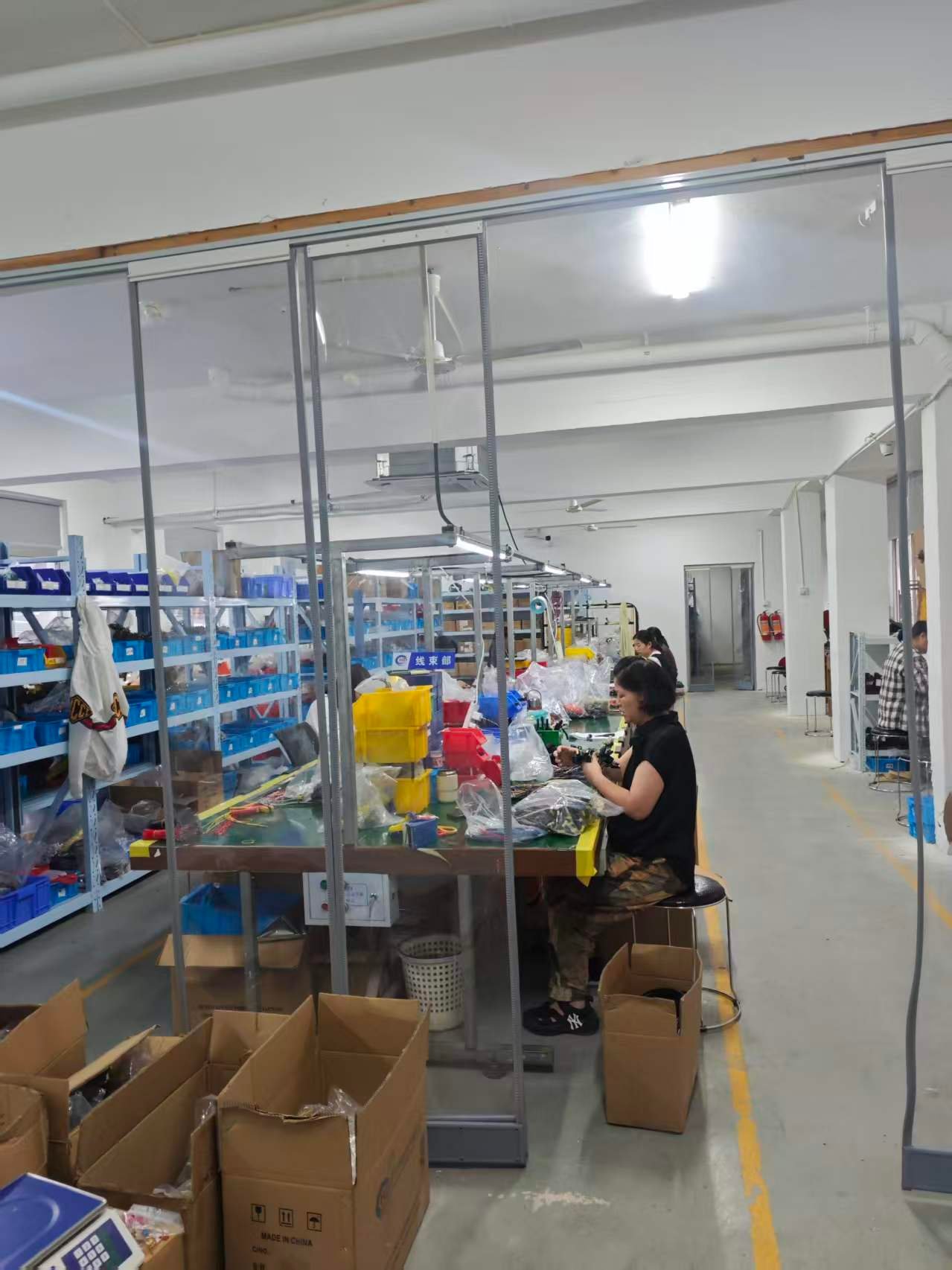

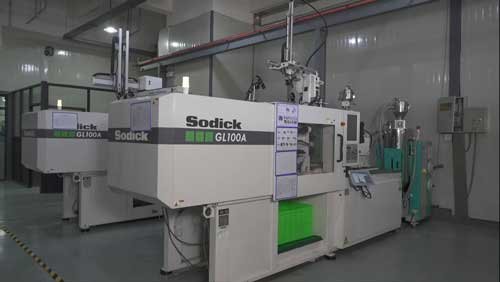

Our factory owns an in-house stamping workshop equipped with a full range of process facilities, including terminal stamping & forming, sensor pin electroplating, fully automatic closed-loop crimping, double-lock housing injection molding, self-developed silicone seal forming, double-seal secondary overmolding, integrated assembly of cavity balanced breather valves, shielding harness matching crimping & grounding, injection molding with symmetrically arranged terminals, customized vehicle shielding overmolding, and automotive-grade weather-resistant injection molding. Professional operators are assigned to every production process to guarantee 100% safety and reliability of all connecting assemblies.
At CV, we can manufacture standardized and customized chassis connectors tailored to your whole vehicle project requirements, suitable for passenger vehicles, trucks and new energy vehicles, and applicable to ABS, wheel speed sensors, brake, suspension and grounding circuits. Designed for harsh operating environments such as muddy water, salt spray corrosion and driving vibration on chassis, our products are produced in accordance with ISO9001 automotive manufacturing standards. The pins feature anti-vibration and anti-loosening performance, with excellent waterproof, anti-corrosion and anti-electromagnetic interference capabilities. They resist aging under extreme temperatures and sunlight, maintain consistent and stable signal transmission, avoid circuit faults, safeguard driving safety and extend vehicle service life.
Send us an inquiry now, and we will offer you something unexpected.
Advantages of Auto Chassis Connectors: Solving Four Major Vehicle Driving Pain Points
Electromagnetic interference solution:
Adopt CV dedicated matching shielded wiring harnesses equipped with built-in crimped grounding structures specially developed for electromagnetic shielding. The over molding process effectively blocks current and electromagnetic waves from interfering with signal transmission. Our regular standard wire types include: Japanese thin-wall automotive wires AVSS, German standard low-voltage automotive wires FLRY, American standard wires UL1015/1007, European VDE standard wires, and national standard power cords 60227 IEC. Customized production is available to meet your unique requirements.
Electronic control failure solution:
Adopt automotive-grade injection molding raw materials that resist high and low temperatures and anti-aging. Equipped with multi-layer structures of sealing, locking and shielding, the products reach IP67 protection rating. We implement standardized workshop production procedures with quality inspection control at every process.
Solution for maintenance and quality issues:
We provide a one-stop solution integrating standardized and customized products, with unified supply of all chassis system components. Supported by our self-developed complete production lines, stable quality control and consistent quality for mass shipments, our products deliver outstanding reliability to eliminate risks from the source.
Full series OEM equivalent products:
Our products match the specifications of international original manufacturers including TE, Delphi, Yazaki, Molex, Sumitomo and more. The housings, terminals, locking structures and electrical parameters fully comply with original factory standards, allowing direct replacement and assembly without modifying the vehicle wiring harness.
Brake Connector
Auto brake connectors work with brake sensors and ABS systems for steady signal transfer. Double sealed to block water and salt, shockproof self-locking design stops loosening, heat/cold resistant, anti-interference, all pin sizes in stock.
Suspension Connector
Auto suspension connectors suit electronic suspension, height sensors and shock absorbers. Reliable signal transfer, double salt-proof seals, tight self-locking locks, fits most car chassis sensors.
Steering Connector
Auto steering connectors fit steering angle sensors and EPS systems for precise signals. Double waterproof & anti-salt seals, shockproof self-locking structure, heat/cold resistant, anti-interference, all pin types, OEM acceptable.
TPMS Connector
TPMS connectors for tire pressure sensors, steady signal output. Double water & salt resistant seals, shockproof self-locking design, temperature resistant, anti-interference, all pin sizes available.
Wheel Hub Connector
Wheel hub connectors for wheel speed & TPMS sensors with reliable signals. Double water/salt resistant seals, shockproof self-locking, temp resistant, anti-interference, all pin sizes, OEM available.
Chassis Electronic Connector
We put customers’ custom designs first. Whatever chassis connectors you need for passenger or commercial vehicles, Kinkong offers one-stop custom solutions matching your design and working environment to solve all your chassis connection problems.
Functions of Vehicle Chassis Control Module Connectors
Chassis control module connectors generally refer to special connectors for various chassis wiring harnesses, frame side members, chassis power distribution and underbody electrical components. They mainly provide a stable and safe power and signal transmission system for electronic control systems. Equipped with double locking and double sealing structures, these connectors achieve IP67/IP68 waterproof ratings, which is vital to avoid poor signal transmission on vehicle chassis.
Functions of Chassis Control Module Connectors
Wiring harnesses serve as a reliable safety barrier against poor contact, water ingress corrosion, signal interference and terminal loosening caused by bumpy driving.
- Standard Harnesses
Consisting of automotive-grade signal wires and power distribution wires in various gauges, they mainly ensure the sealing performance of crimped terminals, preventing muddy water and salt spray from seeping into the housing through harness gaps. Secure crimp bonding between wires and terminals is mandatory to guarantee full functional reliability. - Shielded Harnesses
These harnesses are designed to eliminate distorted sensor signals and false ECU fault codes, enabling accurate signal transmission for ABS and chassis electronic control modules. They are manufactured with crimped grounding structures and shield overmolding processes. - Compatible Harnesses
This category covers routing-specific harnesses. Key considerations include pin layout, cable outlet angle, product specifications, sealing performance, and optional wire gauges for different cost grades.
1.MOQ for regular replica models compatible with TE, Delphi, JST and other brands starts at 100 pieces, and mixed orders of different products are acceptable.
2.Samples of all series models can be requested separately without the 100-piece MOQ limit, ideal for pre-matching, assembly and performance testing.
3.For custom products, flexible order quantities can be negotiated for long-term partnerships; small-batch custom orders are subject to minimum quantity requirements.
We have professional sales staff and after-sales engineers to provide comprehensive guidance and solve all your problems without worries.
1.Mass orders of in-stock items: delivery within 3–7 days
2.Simple customization including logo printing and color modification: 7–12 days.
3.Mold development plus mass production: 25–43 days, subject to product structural complexity Sample delivery: within 3 days
Our connectors feature excellent waterproof performance with IP67/IP68 protection ratings, fully resistant to water splashes, rain and short-term immersion.
IP67/IP69K High Protection Chassis Connector
Designed for harsh working conditions such as muddy water, oil contamination and vibration, compatible with 2P-12P multiple specifications and supporting TE/Deutsch connector types.
DT Series Heavy-duty Connectors
IP67 waterproof, covering DT and 6.3mm high-current series. Designed for heavy-duty trucks, construction machinery and agricultural vehicles. It features temperature resistance from -40℃ to 120℃ and high impact resistance, making it the preferred connection solution for chassis power and hydraulic systems.
High-protection IP67/IP69K Waterproof Connector
Adopts high-strength PBT+GF material, compatible with Yazaki/TE. Suitable for long-term exposure to rain, sediment and chemical corrosive environments, ensuring fault-free connection within the temperature range of -40℃ to 120℃.
Series ECU Connector
Supports 34P-60P+ high-current signal transmission, with precision die-casting process and secondary lock structure.

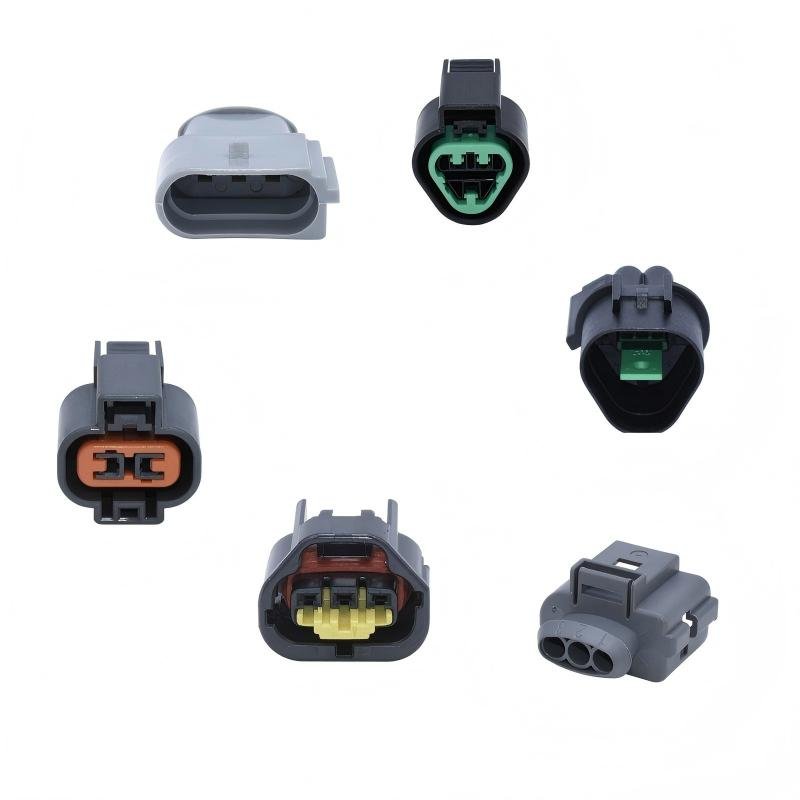

Miniature Sensor Connector
Supports 2P/3Pin high-precision sensor connection, mainly applied to wheel speed, water temperature and liquid level detection. It features low contact resistance with fast and stable signal transmission.
PCB Board End Connector
Multi-core & high density | Secondary lock and foolproof design. Mainly applicable to chassis domain controllers, ECU and body control modules, with excellent anti-electromagnetic interference capability
Covers DT series
Mainly suitable for heavy-duty trucks, construction machinery and new energy vehicle chassis. It supports 46A high current with excellent waterproof, dustproof and oil-resistant performance.
Frequently Asked Questions (FAQs)
Special sealed plugs for vehicle undercarriage electronics. Deliver steady sensor signals on rough roads. CV certified chassis connectors with free samples.
Match plugs by pin size, IP grade & temperature resistance. Avoid corrosion and loose connection issues. Our engineers offer custom matching & mold development.
Standard lock-in mounting procedure for chassis plugs. Shorten assembly time and prevent water leakage. We provide installation manuals and technical videos.
Dual-sealed design against water and road salt. Stop short circuits and sensor faults under vehicles. All our chassis connectors reach IP67 waterproof standard.
Vibration-proof PA66 chassis connectors for extreme temperatures. Maintain stable signal during long driving. Full pin sizes in stock, fast OEM customization.
Double rubber seal & self-locking waterproof structure. No extra tape needed for harness assembly. We adjust sealing design based on your working conditions.
Main faults include salt corrosion, vibration loosening and signal interference. Reduce after-sales breakdown cost with upgraded plugs. Free failure analysis service for your samples.
Different heat resistance, sealing and anti-shock specs for two areas. Avoid mismatched connectors causing early aging. Separated chassis/engine connector catalog for easy selection.
