12 Pin plug Automotive Connector Manufacturer

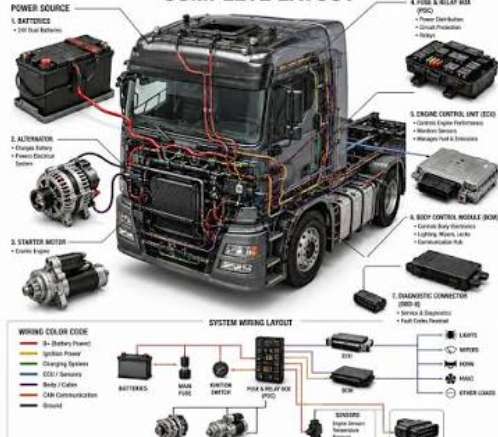

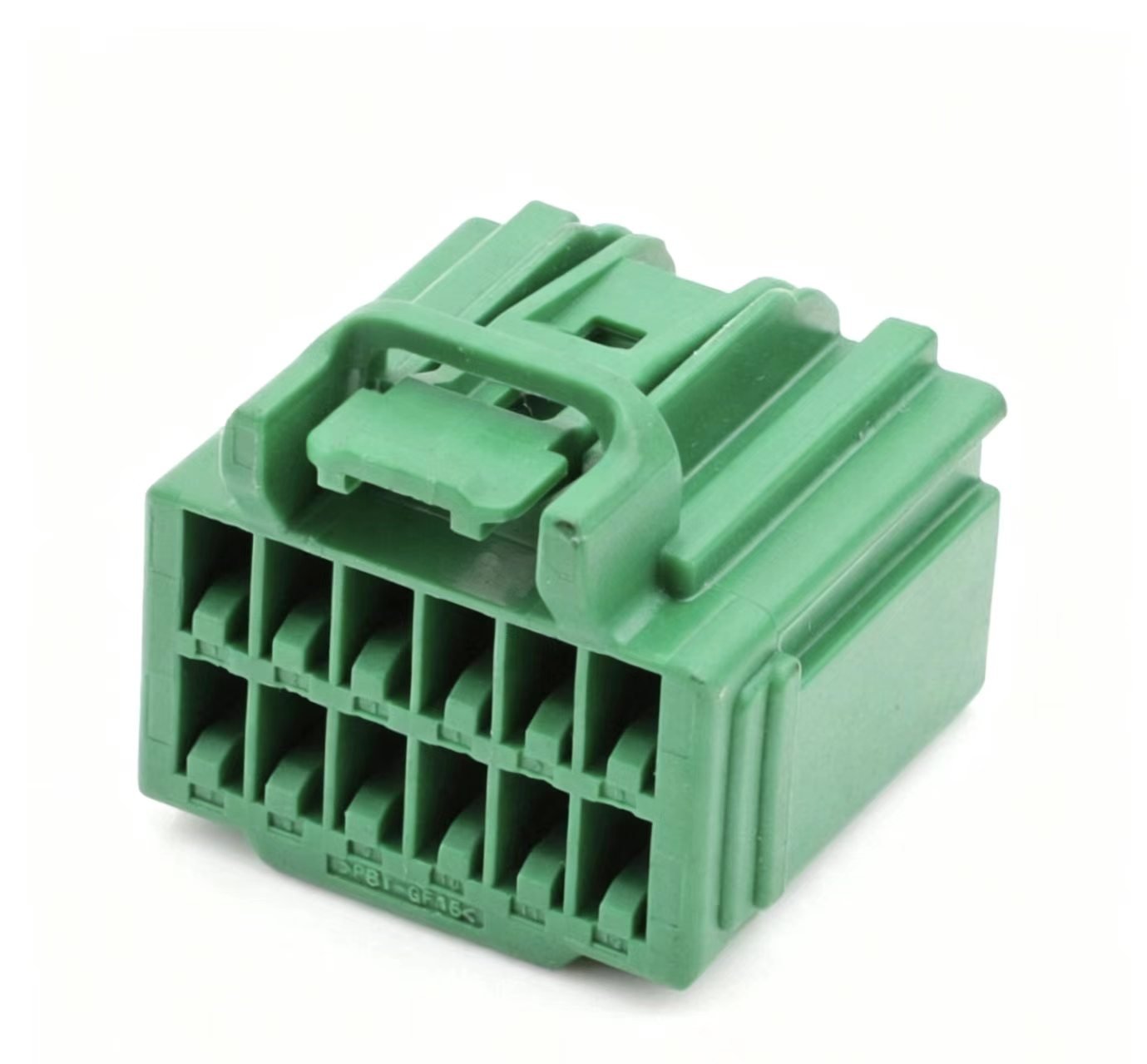

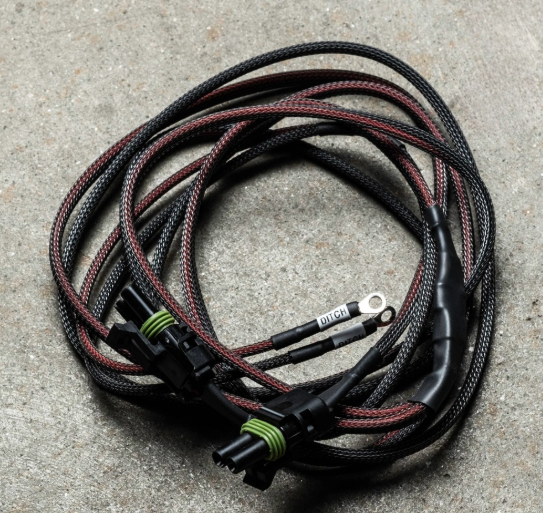

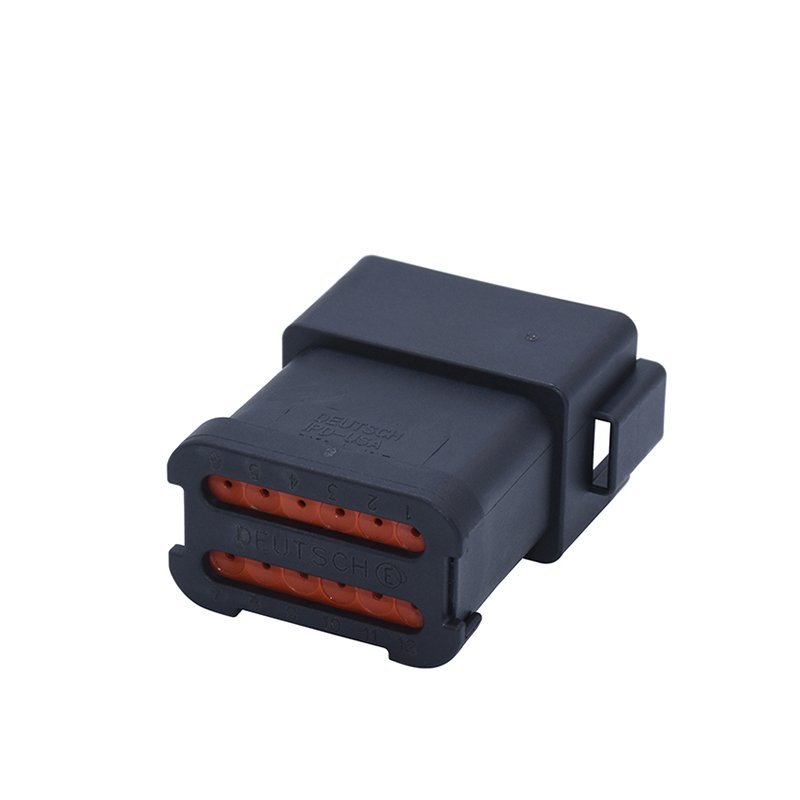

A 12-cavity automotive connector is designed for multi-circuit power distribution and signal transmission. There is no single universal connector model for all 12-cavity applications. Based on extensive automotive connector sourcing experience, selection requires more than cavity count alone. Key factors include connector series, male or female housing configuration, ingress protection (IP) rating, mounting style, keying and polarization features, and terminal specifications. A common sourcing issue is overlooking differences between connector series, resulting in incompatible mating interfaces or improper fitment. Typical applications include commercial vehicles, construction machinery, agricultural equipment, new energy vehicle wiring harnesses, ECU controllers, and automotive lighting assemblies.

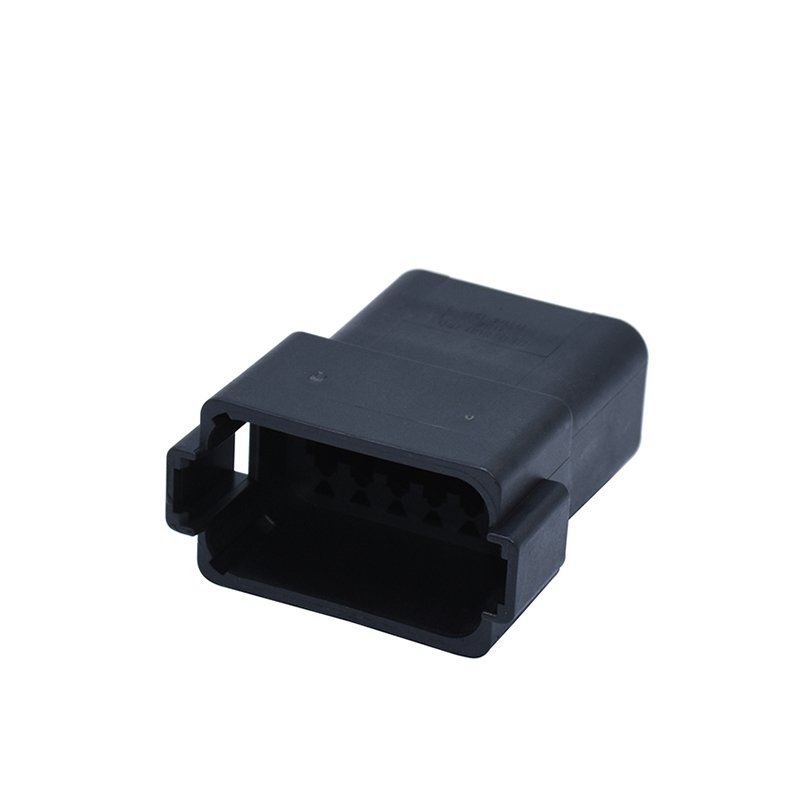

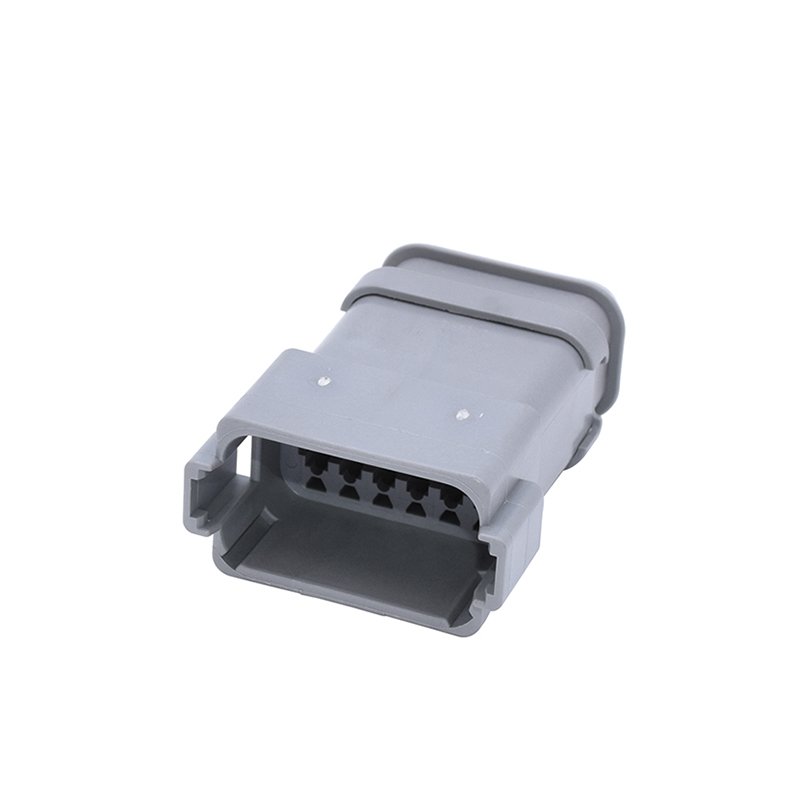

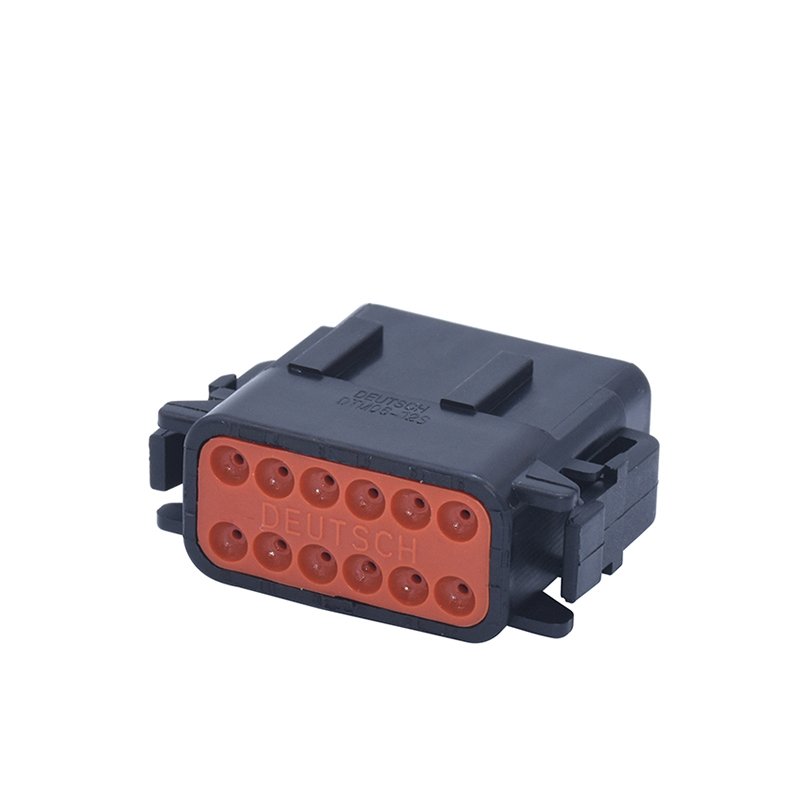

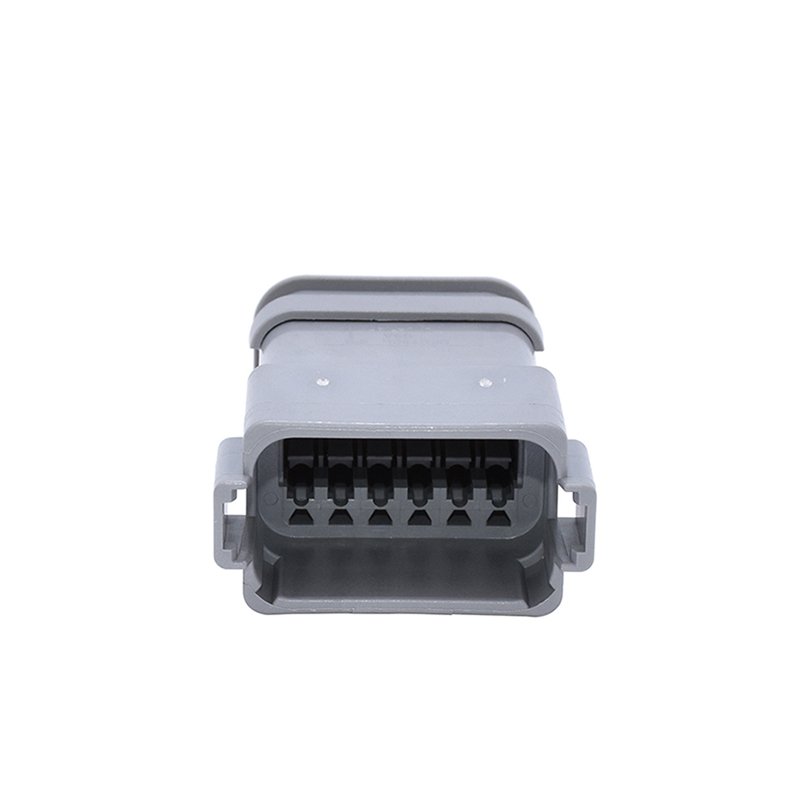

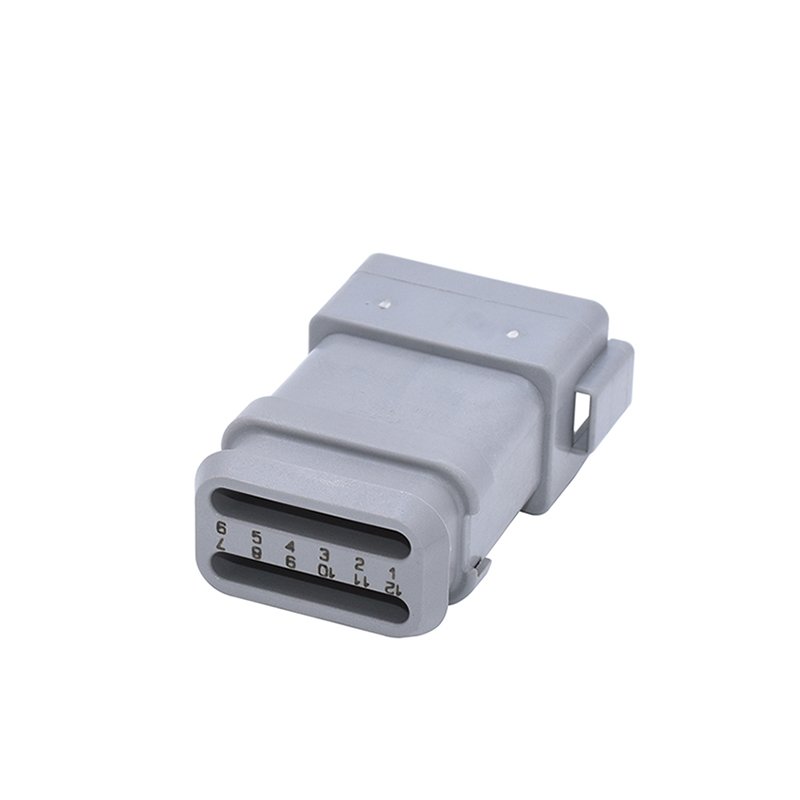

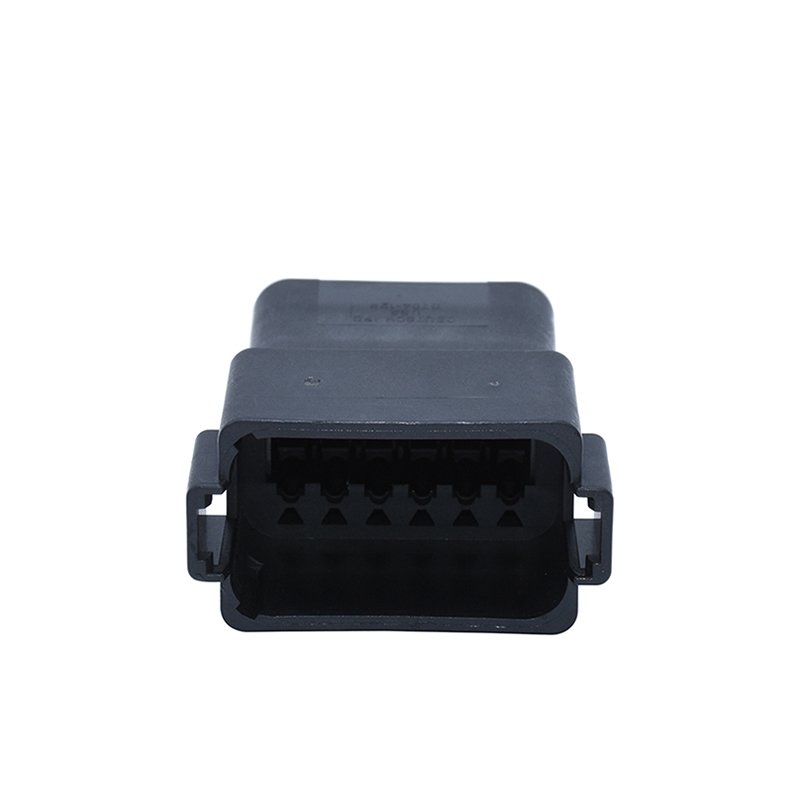

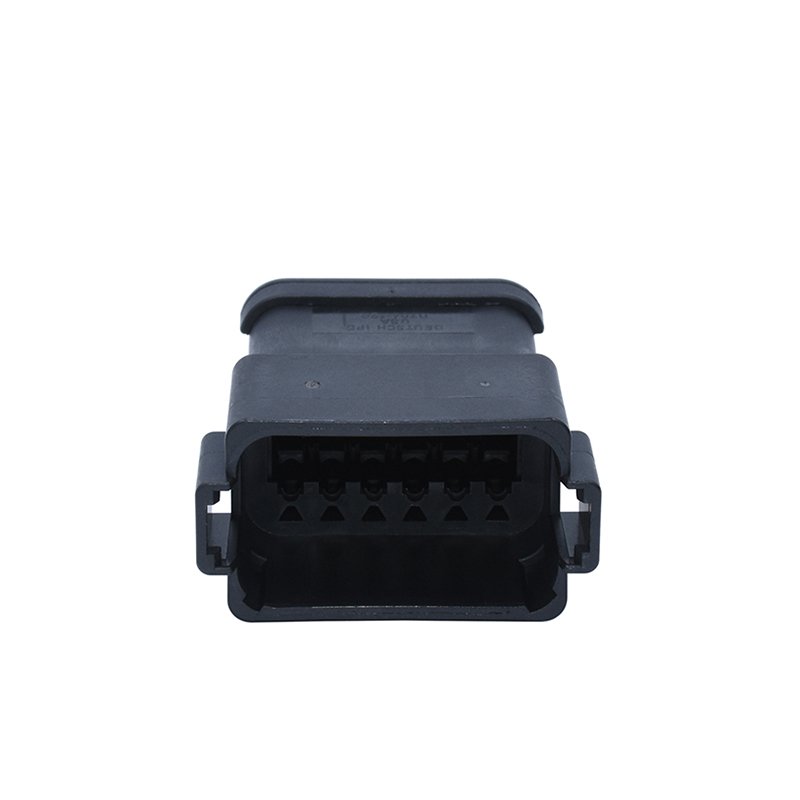

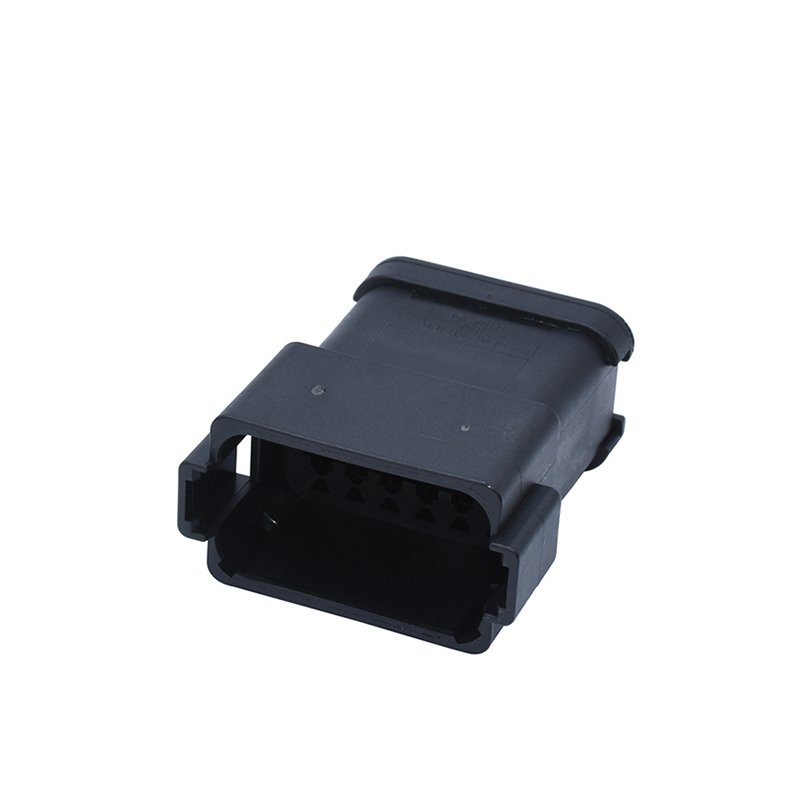

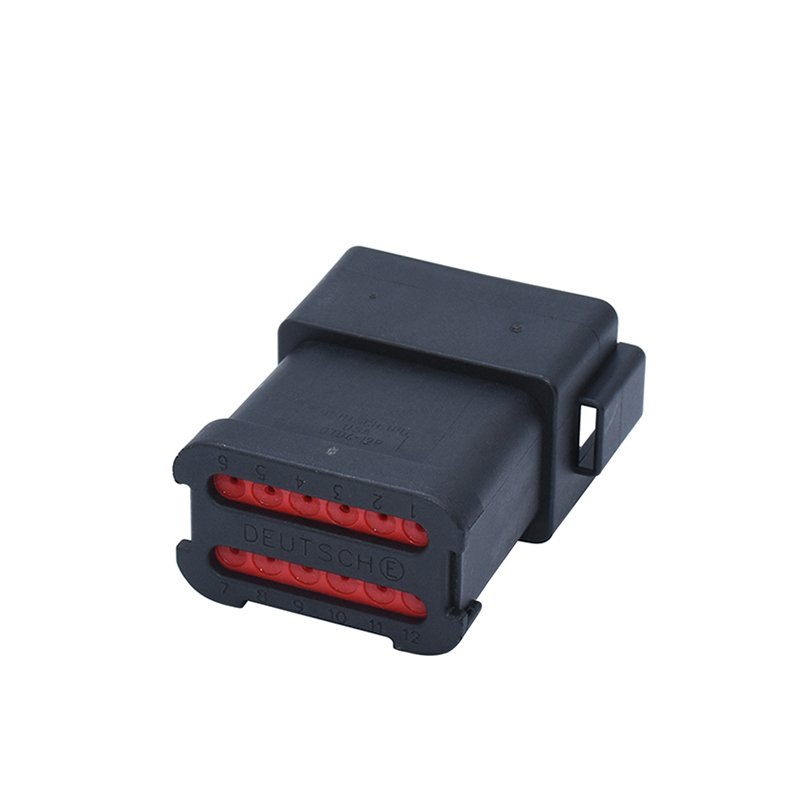

Female Connector Housing: The housing accommodates male pin terminals, with receiving cavities at the mating interface to accept the corresponding male connector. Housing part numbers commonly begin with “04” and may include suffixes such as “PA” or “PB,” depending on the connector series. It serves as the receiving side of the mating connector pair.

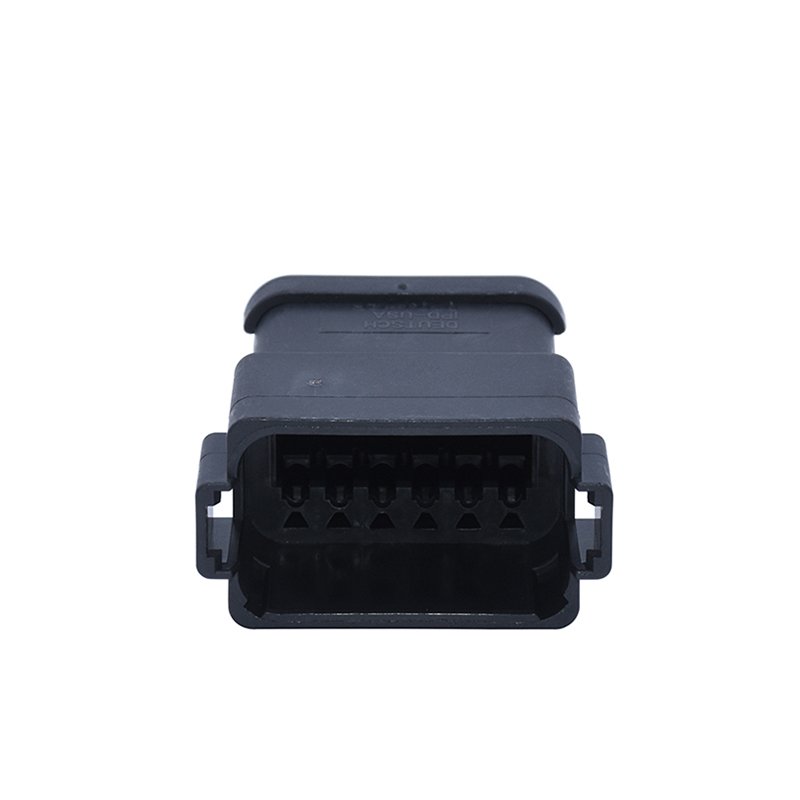

Male Connector Housing: The housing accommodates female socket terminals and mates with the corresponding female connector housing. Part numbers typically begin with “06,” while suffixes such as “SA” and “SB” may indicate different keying configurations, depending on the connector series. The mating interface is designed to match the corresponding female housing within the same series and compatible keying configuration.

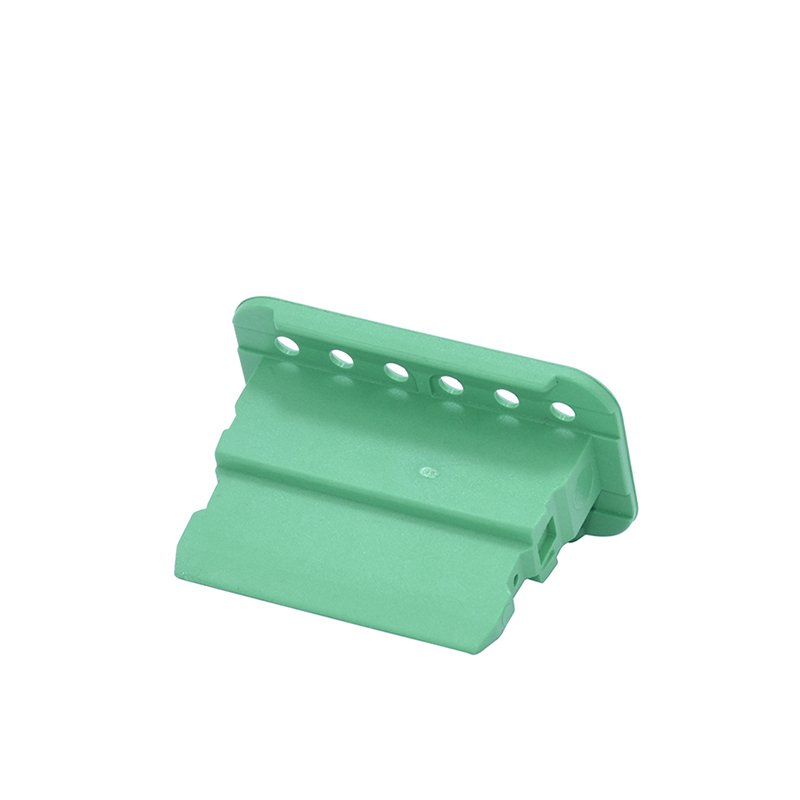

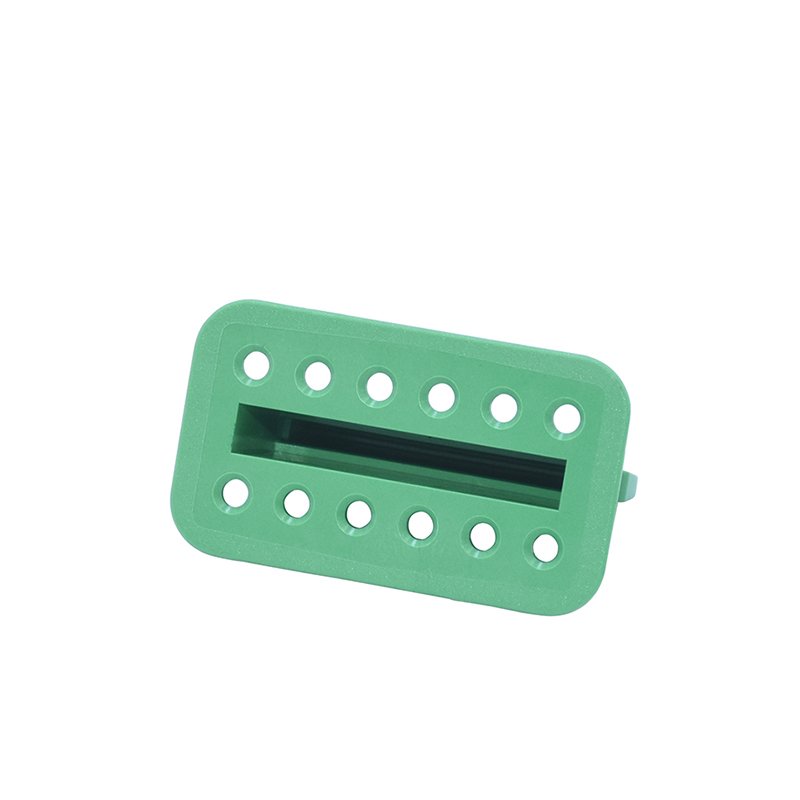

Sealed automotive connectors rely on two complementary sealing barriers: wire seals and interface seals to protect against water, dust, and oil contamination. Wire seals close the gaps between individual wires and the connector housing to prevent contaminants from tracking along the wires into the connector. Interface seals seal the mating interface between the male and female connector housings. Retainers, housing latches, and other associated components help maintain proper seal compression and secure mating engagement. If any part of the sealing system is missing, damaged, or improperly assembled, ingress protection may be compromised, potentially leading to terminal corrosion, increased contact resistance, intermittent electrical connections, or circuit failure.

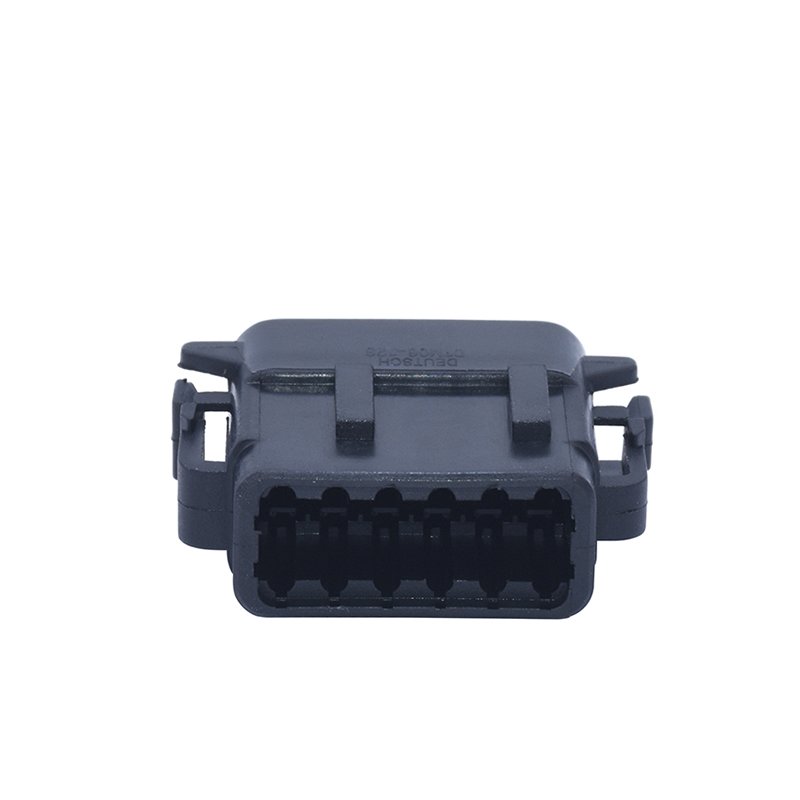

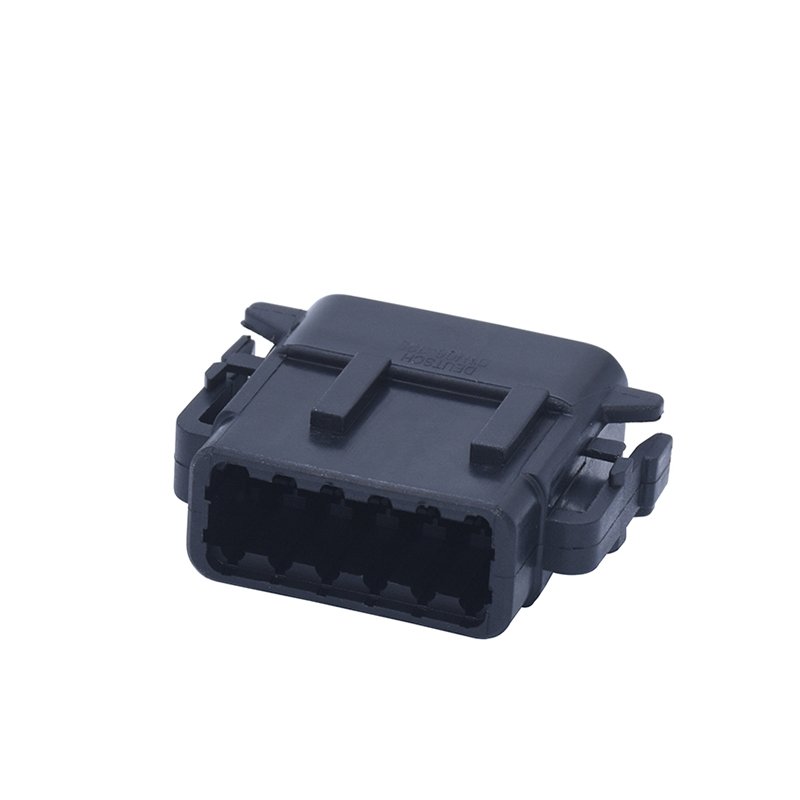

The DT series features larger cavities designed to accommodate larger contacts and support higher-current applications, with both free-hanging and factory-designed flange-mount configurations available. The DTM series is a more compact connector family, typically available in standard free-hanging configurations without an equivalent factory flange-mount version. The two series use different housings, seals, wedgelocks, and contacts, which are not interchangeable. Even when both connectors have 12 cavities, DT and DTM connectors are not mating-compatible.
