From Connector Components to Complete Solutions
We are equipped with high‑precision equipment. Our main manufacturing processes include:
- Mold development
- Injection molding
- Seal component manufacturing
- Terminal stamping
- Connector assembly
- Wire harness matching supply
Crankshaft Sensor Connector Solutions

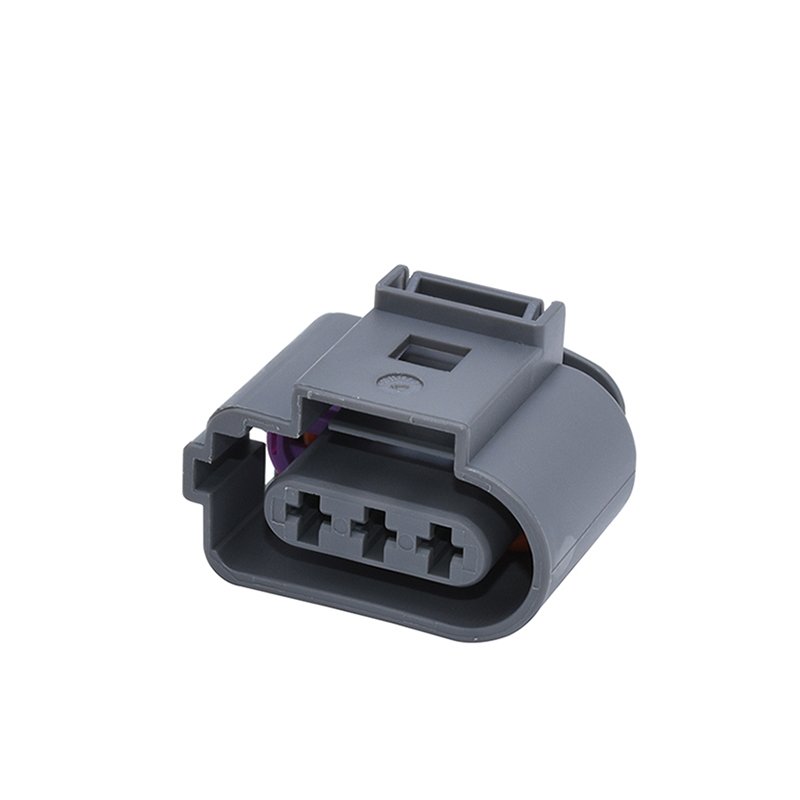

3-Pin Crankshaft Sensor Connector
3‑pin female waterproof crankshaft sensor connector, compatible with OEM part number 1J0 973 723G. Constructed with PBT housing material, withstands temperatures from ‑40℃ to 120℃. Matches terminals 964286‑2, waterproof seals 828904‑1 and mating connectors.

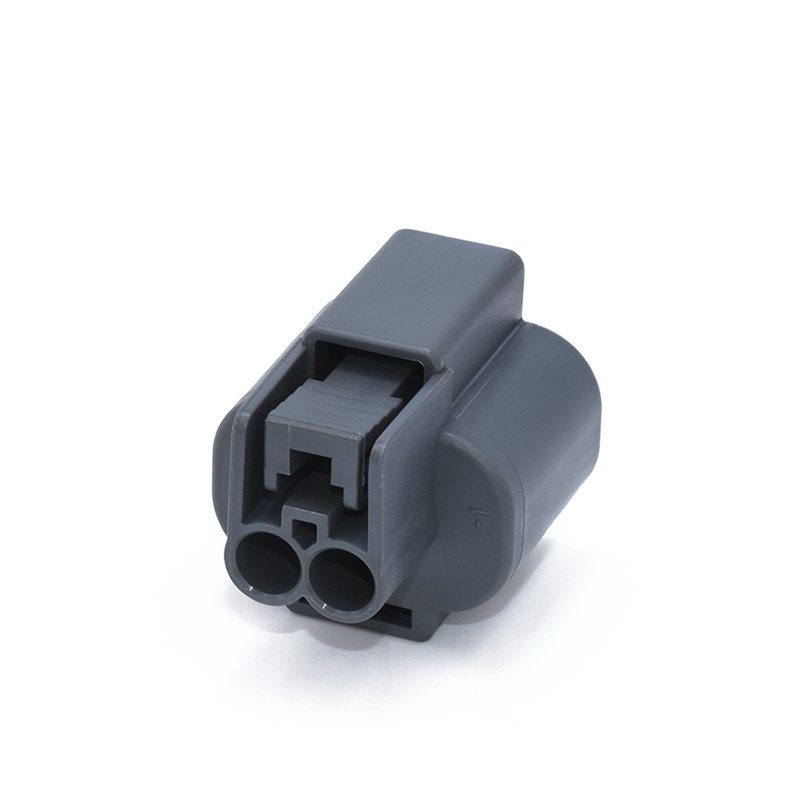

2-Pin Crankshaft Position Sensor Connector
2‑pin female waterproof crankshaft position sensor connector, compatible with OEM part numbers 1685453028 / 09 4412 12. Constructed with PBT‑G / PA66+GF housing material, withstands temperature range from ‑40℃ to 120℃.

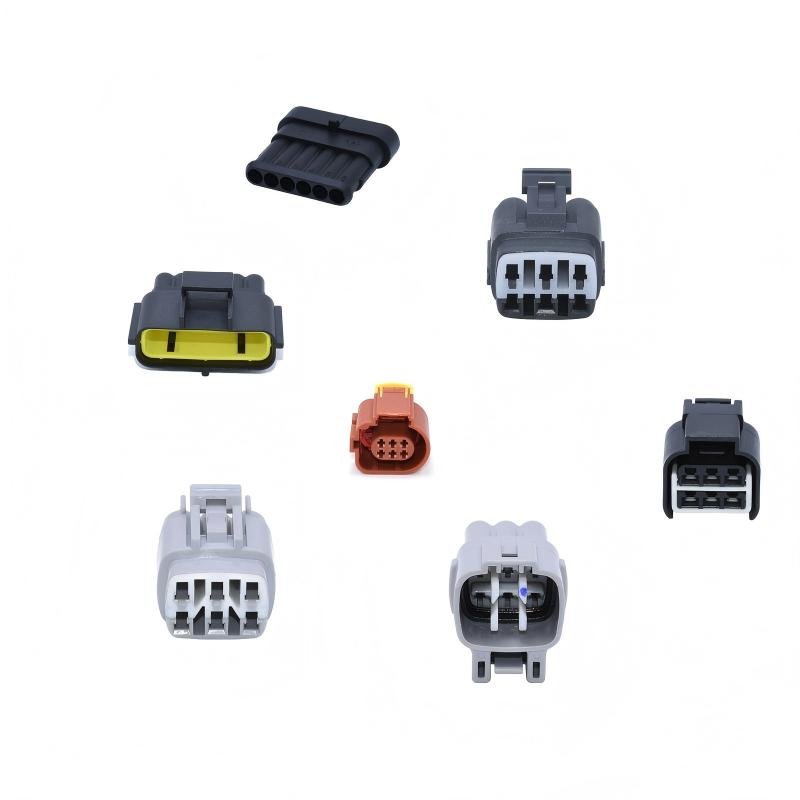

Related Engine Sensor Connectors

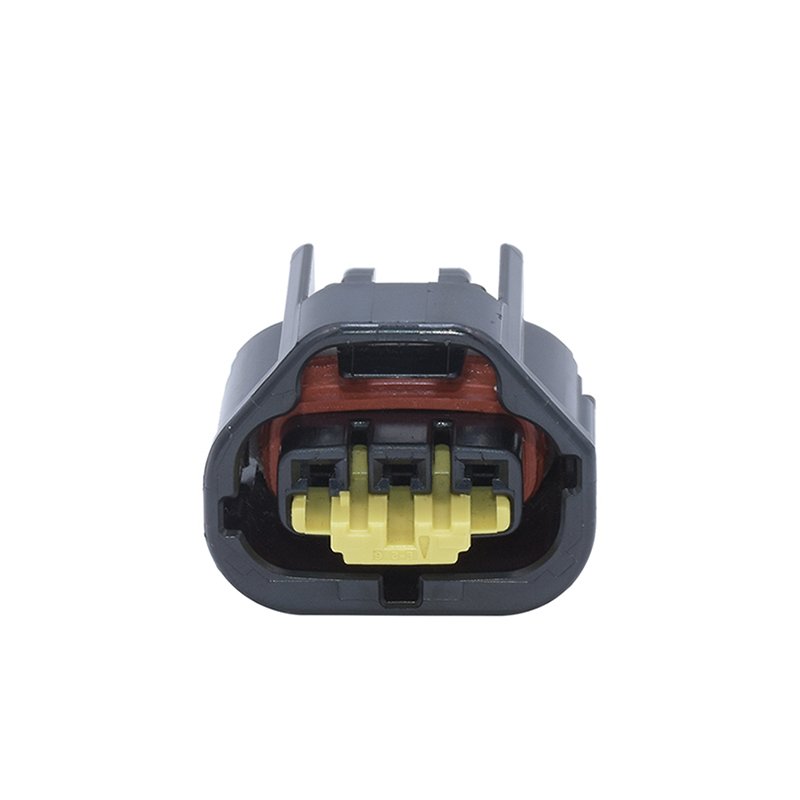

MAP Sensor Connectors
Temperature Sensor Connectors
Position Sensor Connectors
Ignition Coil Connectors
Injector Connectors
Crankshaft Position Sensor Applications
Mainly suitable for sensor‑side connectors of crankshaft, camshaft and various other engine sensors, enabling stable signal transmission under harsh operating conditions. Multiple pin‑out and waterproof specifications are available, with compatibility for mainstream OEM part numbers.
Engine Wiring Harness
YUEQING QIYE AUTO PARTS delivers reliable‑connector‑to‑harness connection solutions. Featuring superior terminal crimping performance and high‑temperature endurance, our products fit perfectly for engine wiring harness assembly.
ECU Signal Interface, automotive ECU connectors
YUEQING QIYE AUTO PARTS delivers reliable‑connector‑to‑harness connection solutions. Featuring superior terminal crimping performance and high‑temperature endurance, our products are perfectly suited for engine wiring harness assembly.
Designed for Engine Sensor Applications
ECU Signal Interface

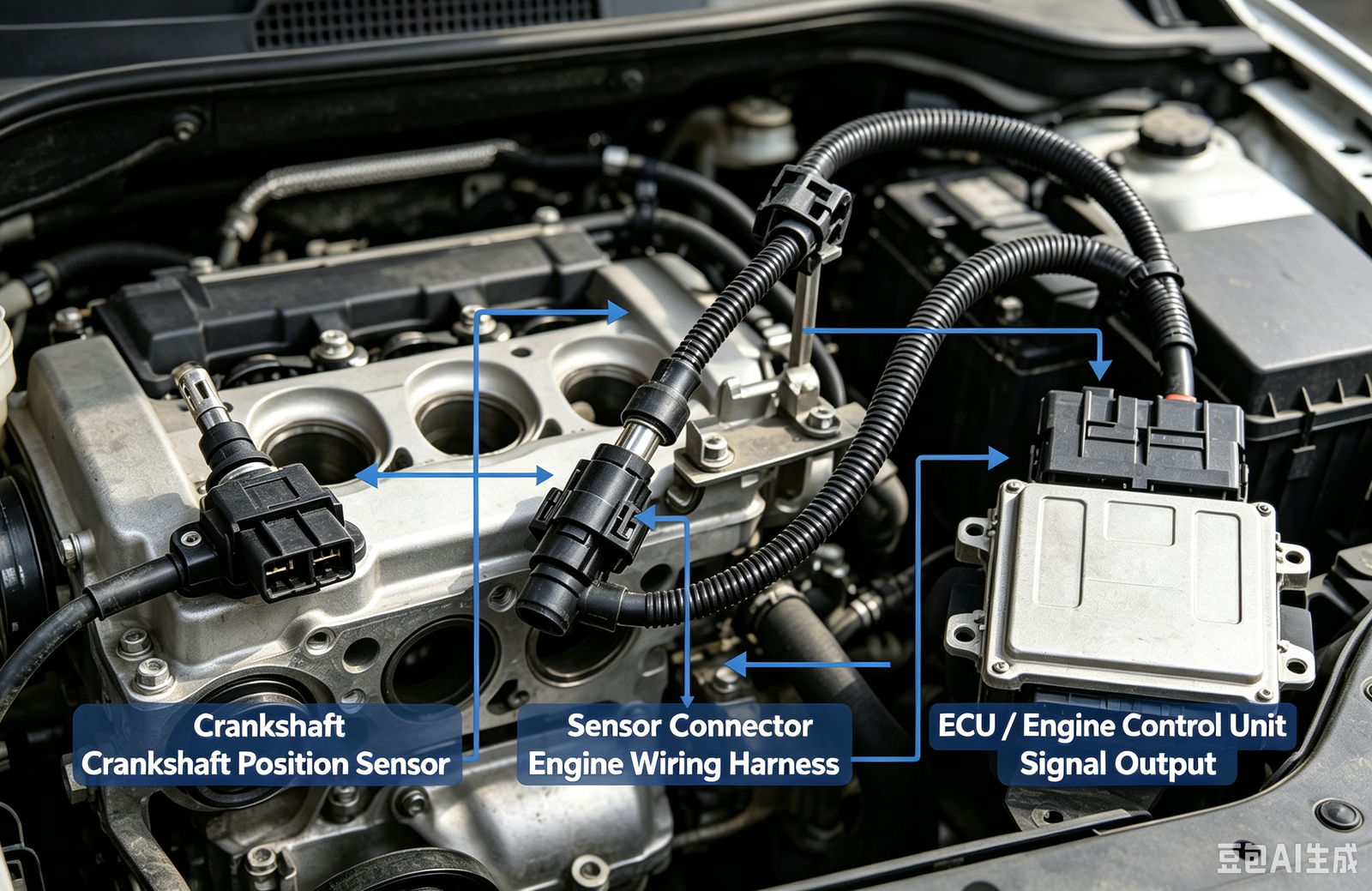

Crankshaft sensor connectors feature low contact resistance and stable electrical contact. Resistant to engine‑bay vibration, temperature cycling and contamination, they preserve signal integrity between sensors and the ECU. This prevents intermittent faults in engine timing control and maintains consistent electrical connection between sensors and vehicle wiring harnesses.
Sealed Connector Design
The sealed connector structure shields the electrical mating interface from moisture, dust and external contaminants, preventing unstable signals caused by corrosion under harsh engine‑bay conditions.
Temperature Resistance
Selected YUEQING QIYE AUTO PARTS crankshaft sensor connectors operate within a temperature range of -40℃ to 120℃.
Secure Terminal Retention
Equipped with CPA / TPA secondary locking mechanism, it achieves secure terminal retention. It resists continuous vibration and mechanical shocks generated during engine operation, eliminating risks of terminal loosening and back‑out. Terminals remain properly positioned inside the connector housing to maintain stable electrical contact.
Compact Sensor Interface
Compact housing design saves installation space in the cramped engine bay. The streamlined profile enables reliable signal connection between crankshaft sensors and wiring harnesses without compromising sealing performance, vibration resistance or electrical integrity. It is ideal for sensor harness applications with limited mounting space.
How to Choose the Right Crankshaft Sensor Connector
You need to confirm the following information:
- Confirm OEM Part Number
- Confirm Pin Count
- Check Connector Shape & Mating Interface
- Check Sealing & Temperature Requirements
- Verify Terminal & Seal
- Request Sample
Why Choose YUEQING QIYE AUTO PARTS for Crankshaft Sensor Connectors?
OEM Part Number Matching
We assist customers in identifying matching products according to OEM part numbers, and supply corresponding samples.
Ready Stock & Production Support
We maintain stock availability and accept small‑batch orders. Sample orders are fulfilled within 3‑7 days.
Complete Connector Components
Not only connectors, but also supporting packages: Terminals + Seals + Mating Connectors.
Custom Manufacturing
YUEQING QIYE AUTO PARTS offers custom solutions for Connectors, Terminals and Wire Harnesses. We cover core manufacturing processes including mold development, injection molding, stamping and rubber sealing.
Electrical Test
Waterproof Test
Terminal Retention
Mating Test
Dimensional Inspection
Our trusted customers have given us excellent reviews.
Johnson
“We have been working with YUEQING QIYE AUTO PARTS for multiple automotive connector projects. Their engineering support, product consistency and fast response have helped us improve our development efficiency. The connector quality and customization capability are exactly what we need for automotive applications.”
Mabel
“YUEQING QIYE AUTO PARTS provides reliable sealed automotive connectors for demanding environments. Their products perform well in applications requiring vibration resistance, environmental protection and stable electrical connections.”
Michael
“From prototype samples to mass production, YUEQING QIYE AUTO PARTS has provided professional technical support throughout the entire process. Their ability to customize connectors and support OEM requirements makes them a valuable long-term partner.”
Frequently Asked Questions About Automotive Crankshaft Sensor Connector
A crankshaft sensor connector is an automotive electrical connector that connects the crankshaft position sensor (CKP sensor) to the vehicle wiring harness and engine control unit (ECU/ECM). It provides the electrical connection required to transmit crankshaft position and speed signals from the sensor to the engine control system.
The crankshaft sensor connector itself does not detect crankshaft movement. The crankshaft position sensor measures the position and rotational speed of the crankshaft, while the connector provides a stable electrical interface for power supply, signal transmission, and sensor grounding.
A crankshaft position sensor connector is used to provide a reliable electrical connection between the crankshaft position sensor (CKP sensor) and the vehicle wiring harness or engine control unit (ECU/ECM).
Its main function is to transmit crankshaft position and engine speed signals from the CKP sensor to the ECU, allowing the engine control system to accurately control ignition timing, fuel injection timing, and engine synchronization.
The connector itself does not measure crankshaft position. The crankshaft position sensor detects crankshaft movement, while the connector provides the electrical pathway for signal transmission.
YUEQING QIYE AUTO PARTS CVCONNECTOR provides crankshaft sensor connectors designed for automotive engine management applications, including connector assemblies for crankshaft position sensors (CKP sensors), wiring harness applications, and engine compartment electrical systems.
Available crankshaft sensor connector solutions can include different connector configurations based on vehicle application requirements, such as:
Different pin configurations
Different housing designs
Different terminal specifications
Different sealing structures
Customized connector solutions according to customer drawings or OEM requirements
YUEQING QIYE AUTO PARTScrankshaft sensor connectors are developed to support reliable electrical connections in automotive environments where vibration, temperature variation, moisture, and contamination resistance are required.
Yes, YUEQING QIYE AUTO PARTS CVCONNECTOR provides crankshaft sensor connectors with different pin configurations, including 2-pin and 3-pin designs for automotive crankshaft position sensor (CKP sensor) applications.
The correct pin configuration depends on the sensor type, vehicle application, and electrical circuit design.
2-pin crankshaft sensor connectors are commonly used for variable reluctance (VR) crankshaft position sensors, where the connector typically carries differential signal circuits.
3-pin crankshaft sensor connectors are commonly used for Hall-effect crankshaft position sensors, where the connector typically includes power supply, ground, and signal circuits.
The connector pin count alone does not determine compatibility. The connector interface, pin assignment, terminal specification, locking structure, and vehicle application should also be confirmed.
Yes, YUEQING QIYE AUTO PARTS CVCONNECTOR provides sealed crankshaft sensor connectors designed for automotive engine compartment applications where protection against moisture, dust, oil, and environmental contaminants is required.
Sealed crankshaft sensor connectors use protective structures such as wire seals, interface seals, and secure locking mechanisms to help maintain reliable electrical connections under harsh vehicle operating conditions.
The sealing design helps reduce the risk of:
Water intrusion
Dust contamination
Terminal corrosion
Electrical signal instability
Connector performance degradation
Yes, YUEQING QIYE AUTO PARTS CVCONNECTOR can help match crankshaft sensor connectors based on OEM part numbers, vehicle application information, connector samples, or technical drawings。
The OEM part number is an important reference for identifying the correct crankshaft position sensor connector because it helps confirm the required:
Connector housing design
Pin configuration
Terminal type
Locking structure
Mating interface
Wiring requirements
However, OEM part number matching should be verified together with the actual connector specifications to ensure mechanical and electrical compatibility
Yes, you can send a connector photo to YUEQING QIYE AUTO PARTS CVCONNECTOR for identification and compatibility evaluation.
If the OEM part number is unavailable, connector photos can provide useful information for identifying a suitable crankshaft sensor connector solution.
Based on the provided images, YUEQING QIYE AUTO PARTS can help evaluate key connector features, including:
Connector housing shape
Pin count
Terminal arrangement
Locking structure
Keying position
Sealing design
Wire configuration
Yes, YUEQING QIYE AUTO PARTS CVCONNECTOR provides terminals and sealing components for crankshaft sensor connectors, supporting complete connector solutions for automotive sensor applications.
In addition to connector housings, YUEQING QIYE AUTO PARTS can provide related components such as:
Automotive connector terminals
Wire seals
Interface seals
Secondary locking components (CPA/TPA, depending on design)
Connector assembly solutions
These components are designed to work together to maintain reliable electrical connection and environmental protection for crankshaft position sensor (CKP sensor) applications.
