What Is an AMP Superseal 1.5 Connector?
Designed for vehicle and off-road harness builds, the AMP Superseal 1.5 is a sealed wire-to-wire connector system built to hold steady electrical connections in harsh under-hood and outdoor environments.
This connector lineup delivers robust multi-stage sealing, rated IP67, IPX6K and IPX9K. The sealing structure blocks dust, moisture and high-pressure jet wash, protecting internal circuits. It works reliably across -40°C to 125°C, matching wide temperature swings seen in automotive electronics.
Taking its name from the 1.5 mm contact size, this series supports 12V, 24V and 48V low-voltage circuits. Each contact can carry roughly 14 amps. Cavity options run from 1 to 6 positions. Full supporting parts are available: male and female crimp terminals, individual wire seals and CPA secondary locks. The secondary lock mechanism locks terminals firmly so they cannot pull back out of the housing after crimping.
Connector housings use UL94 V-2 flame-retardant plastic. Polarised keying stops operators from mating connectors incorrectly during harness assembly. These connectors are frequently supplied as complete kits and widely fitted to vehicle sensors, lamp assemblies, powertrain components, farm machinery and other mobile off-highway equipment.
AMP Superseal 1.5 Connector Models，Male and Female Mating Pair

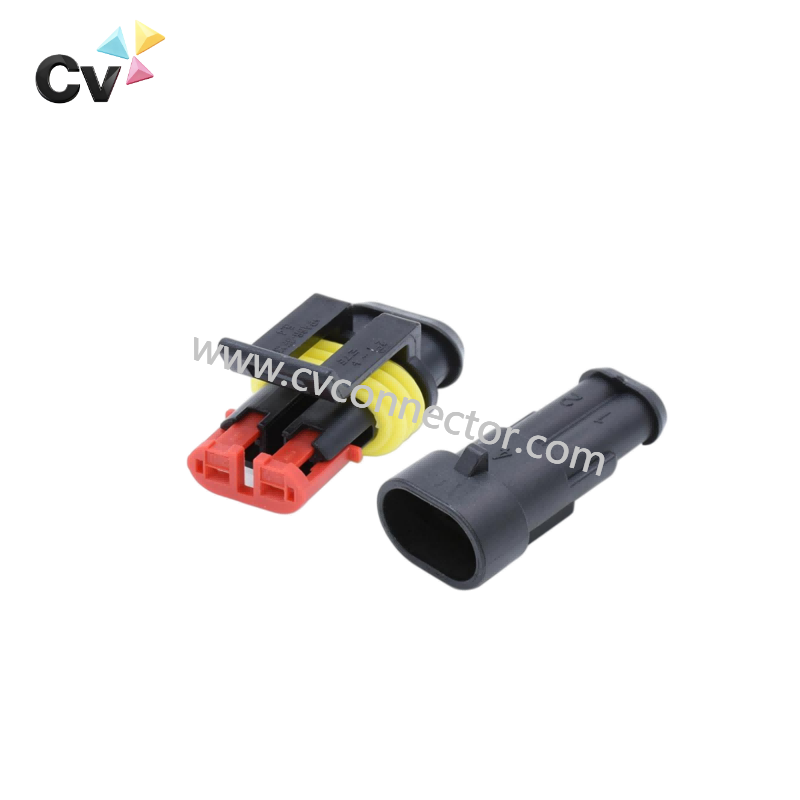

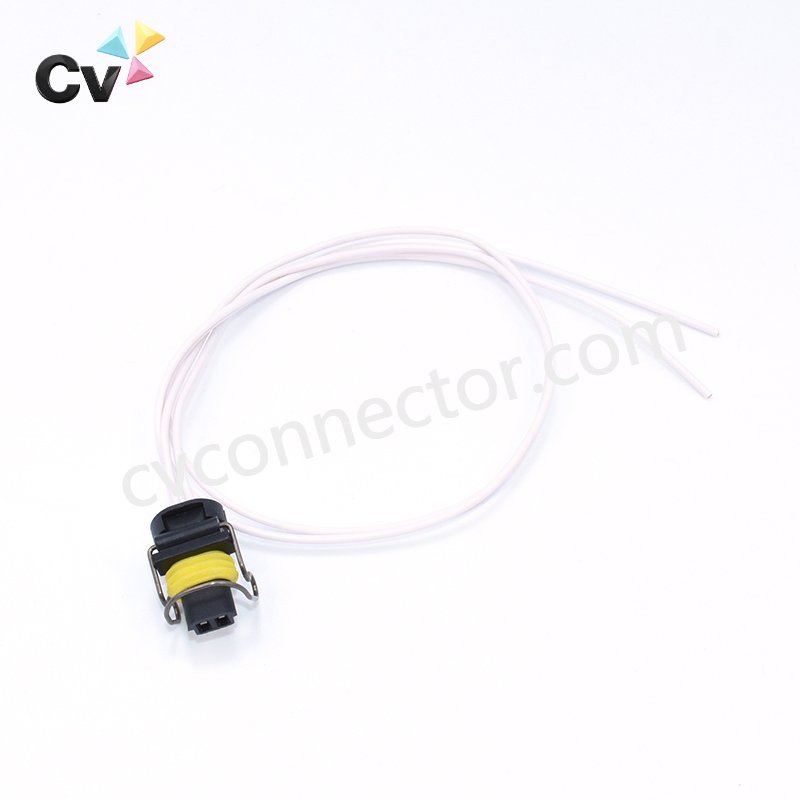

2 Pin AMP Superseal 1.5 Connector
Male OEM Part No.:282104-1
Female OEM Part No.:282080-1

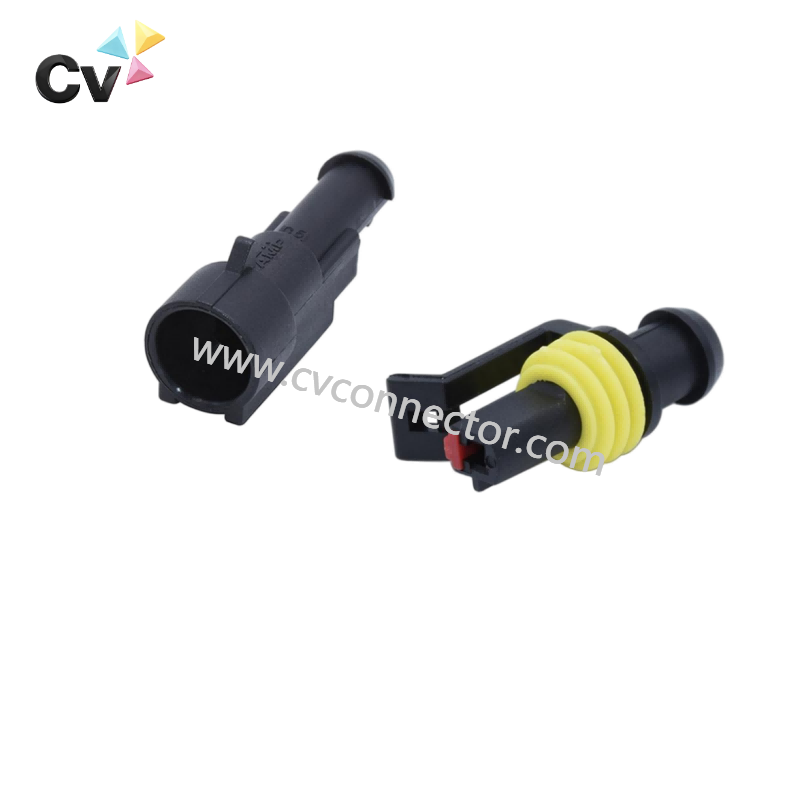

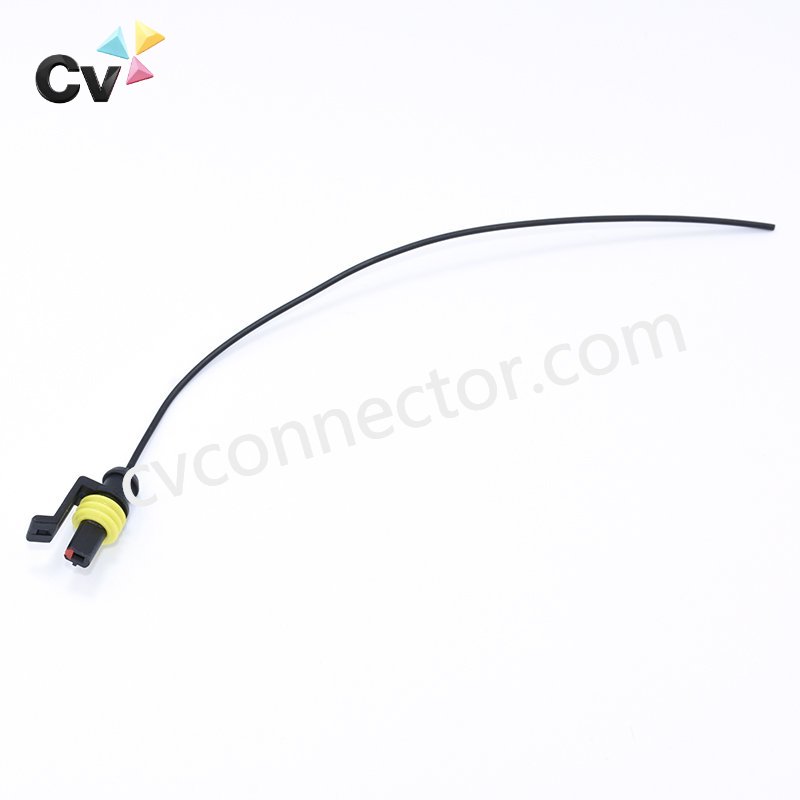

1PIN 1.5 AMP Superseal 1.5 Connectos
Male OEM Part No.:282103-1
Female OEM Part No.:282079-1

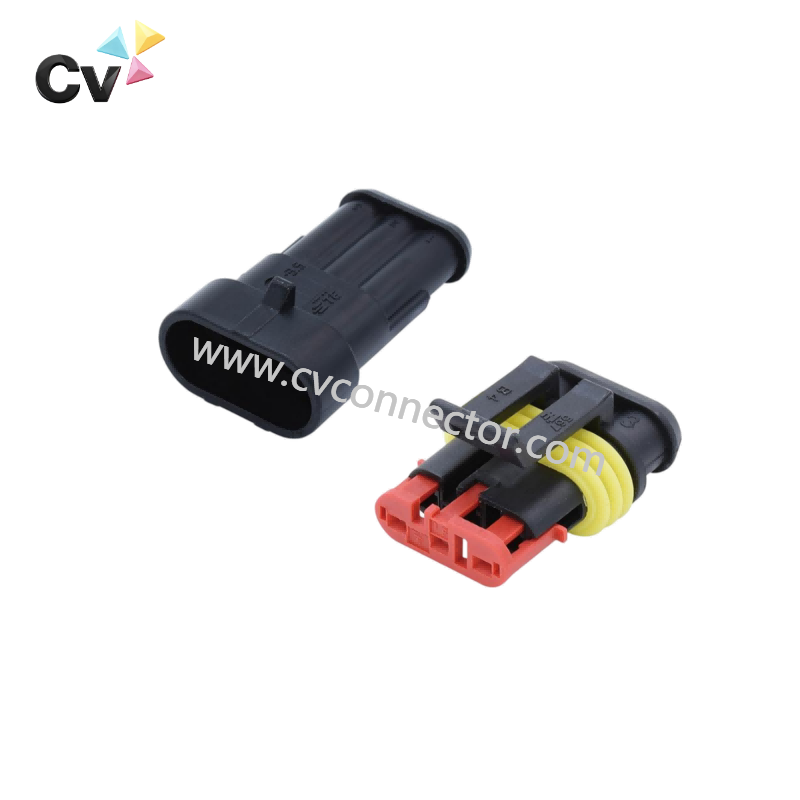

3PIN 1.5 AMP Superseal 1.5 Connectos
Male OEM Part No.:282105-1
Female OEM Part No.:282087-1

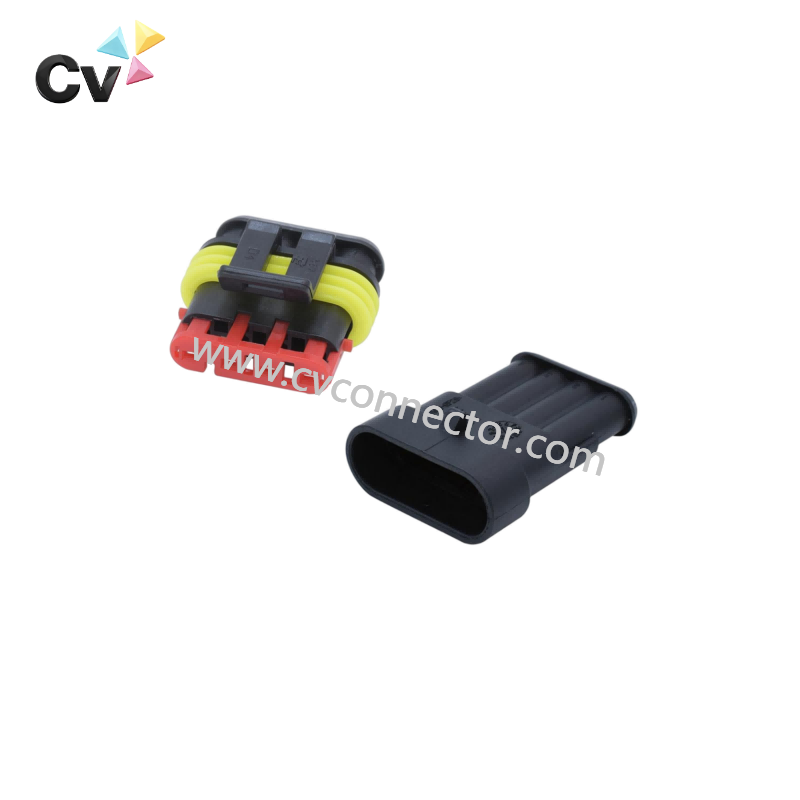

4PIN 1.5 AMP Superseal 1.5 Connectos
Male OEM Part No.:282106-1
Female OEM Part No.:282080-1
5PIN 1.5 AMP Superseal 1.5 Connectos
Male OEM Part No.:282107-1
Female OEM Part No.:282089-1

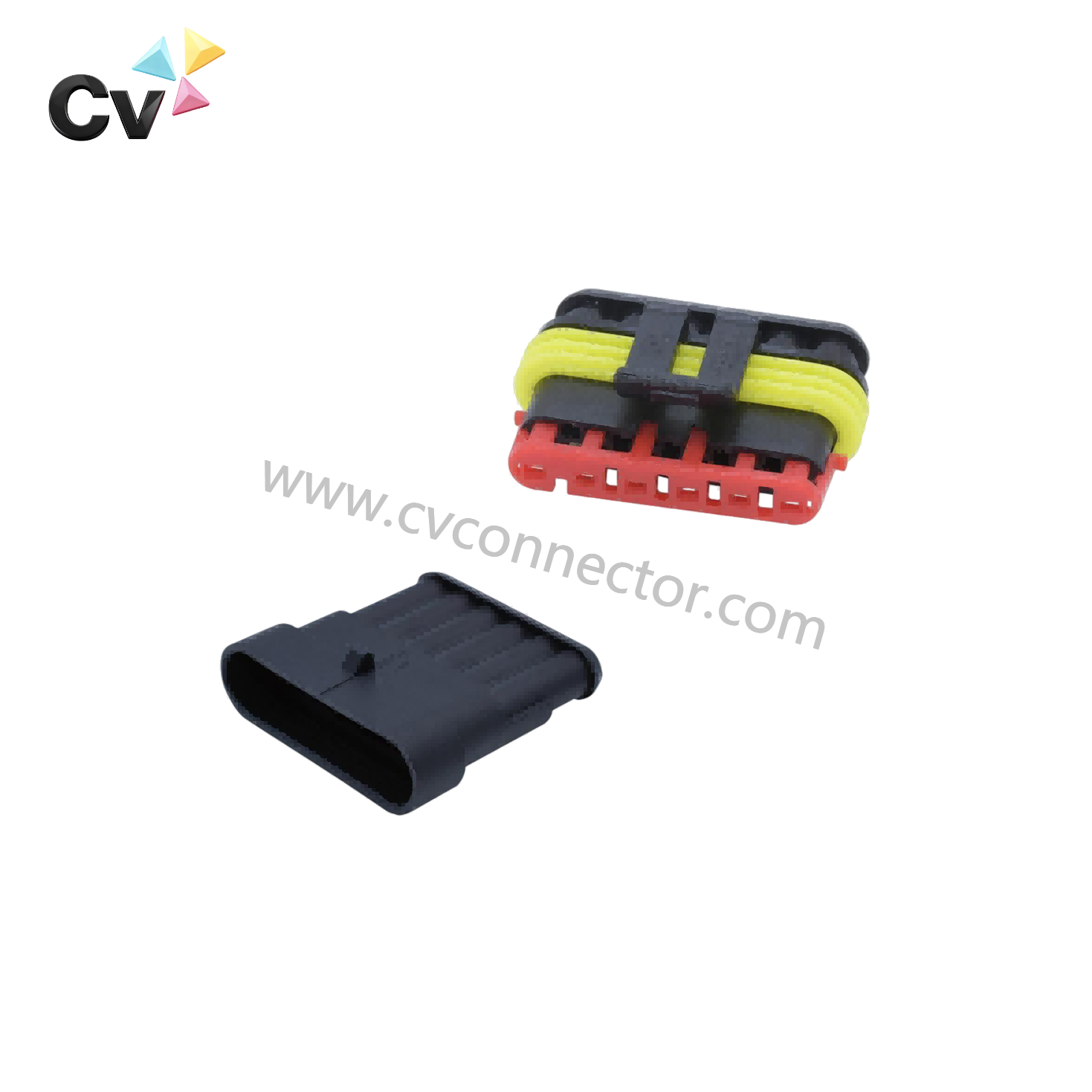

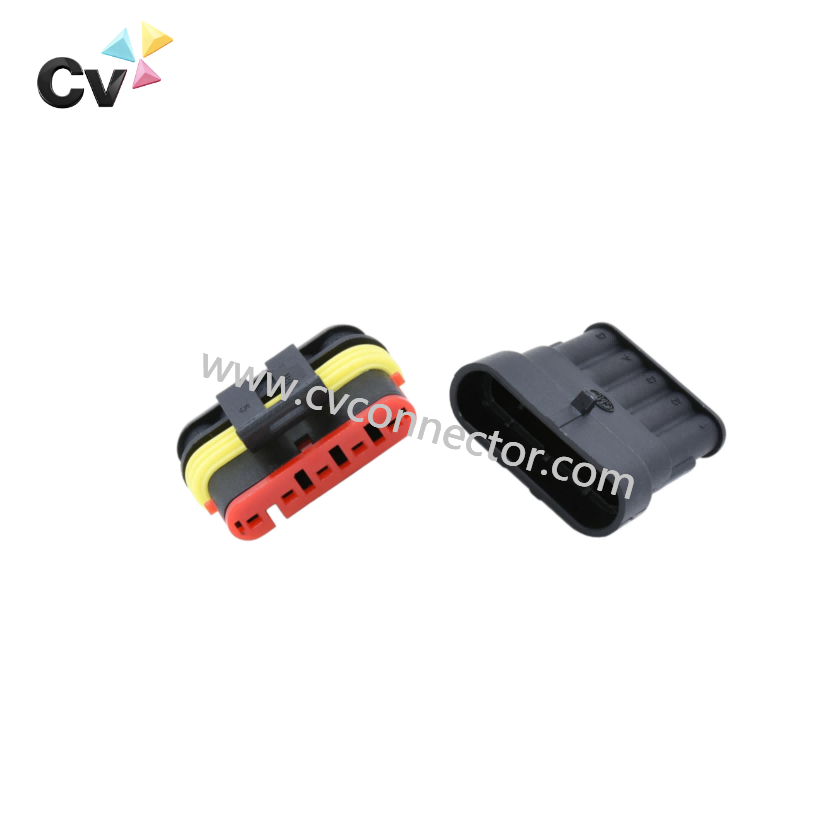

6PIN 1.5 SERIES OEM AMP Superseal 1.5 Connectos
Male OEM Part No.:282108-1
Female OEM Part No.:282090-1

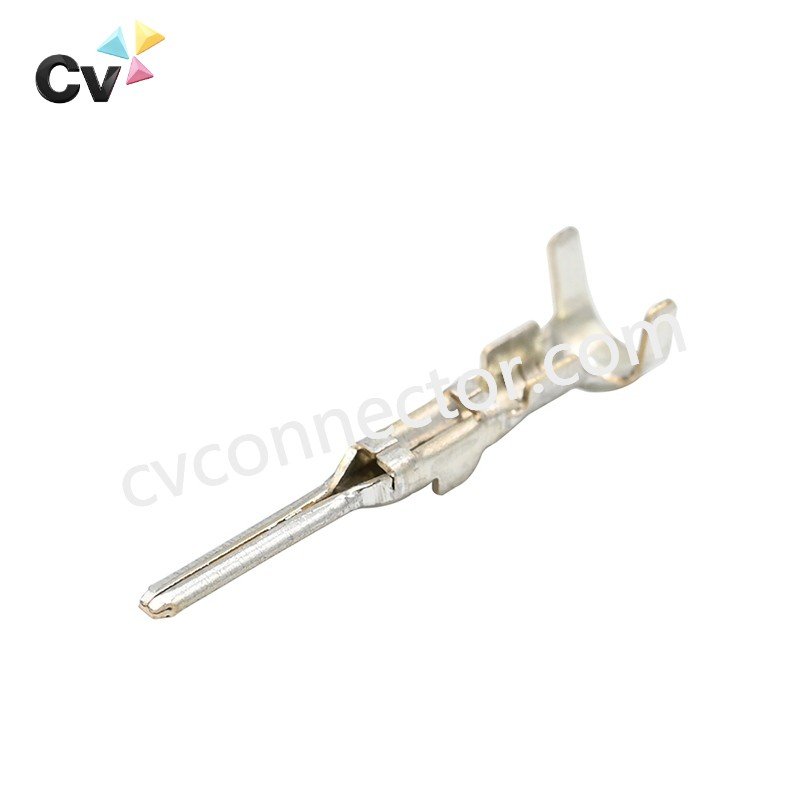

AMP Terminal Series
Seal
AMP Superseal 1.5 Connector Specifications
| Connector series | AMP Superseal 1.5 compatible |
| Number of position | 1/2/3/4/5/6 pin configurations, |
| Sealing | Sealed / Unsealed |
| Housing material | PA66/PA66-GF13 |
| Gender | Female/ Male |
| Matching components | Terminals / Wire seals |
AMP Superseal 1.5 Connector Supplier-YUEQING CV Auto Parts Department
YUEQING CV Auto Parts Department provides compatibility with most equipment on the market, with one-to-one matching with original accessories. The AMP Superseal 1.5 connector is mainly designed for the automotive industry, industrial field, agricultural machinery, electronic engineering, and other industries.
We have long provided a full range of connectors to markets such as the United States, Canada, the United Kingdom, Germany, France, and Australia, and have been widely recognized. We firmly believe that we have always been the supplier you are looking for。
If you have any specific requirements, we can provide a tailored solution.
- Part Number and Drawing Verification
- Sample and Bulk Order Inquiry
- Customization and Related Component Supply
If you are not sure about the selection, contact our technical team for free consultation.
AMPSEAL 16 Terminals and Seals
YUEQING CV Auto Parts Department offers AMPSEAL supplies matching terminals and sealing kits for AMP Superseal 1.5 Connector. For a full connector assembly, confirm terminal part numbers, wire gauge, seal layout and housing compatibility.
Matching Crimp Terminals:Validate terminal dimension, wire range, contact layout and plating specs against relevant standards.

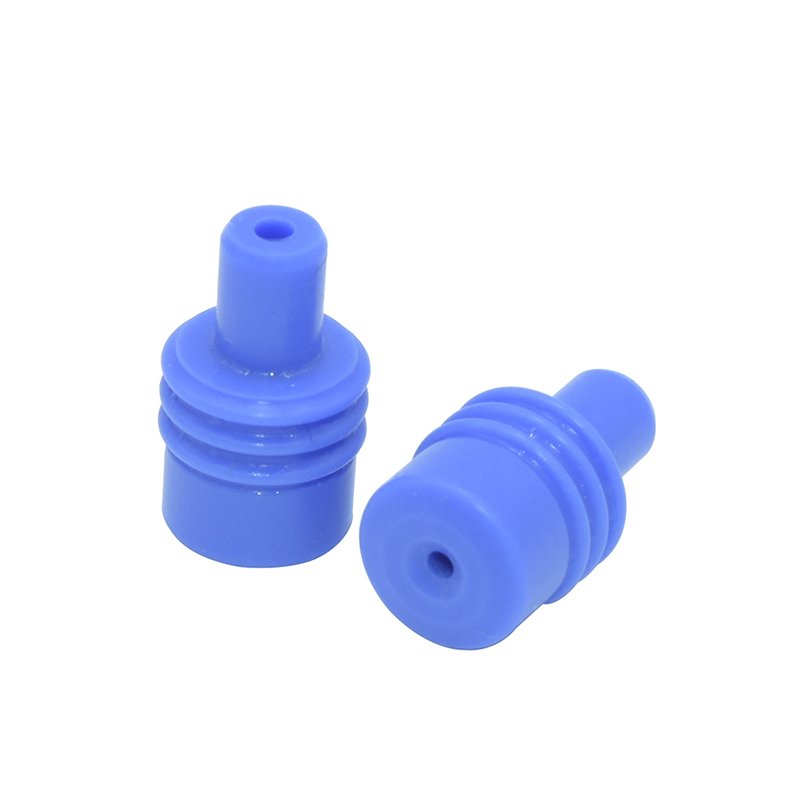

Cable Seals & Connector Seals:Select seals matched to housing, terminal layout and wire size. Do not assume identical seals fit all housings.
Full Connector Assembly Requirements:When requesting quotations, clarify whether you only need housings or complete assemblies with terminals and seals. Confirm the scope of supply for each part number.
Frequently Asked Questions
No universal waterproof rating should be assumed for every model or assembly. Confirm the sealing design and any documented IP rating for the exact product and assembled configuration.
Related terminals and seals may be available for compatible models. Provide the connector reference number and wire specifications so the components can be checked together.
Ask our team to confirm sample availability, minimum order quantity, lead time, and any applicable sample charges for the selected model.
