8 Pin Automotive electrical Connector Solutions
We offer connectors compatible with DEUTSCH DT Series, DEUTSCH DTM Series, AMPSEAL Series, Rear Radar Connector, VW 8-Pin Connector, etc.
Available with 8-pin male and female housings respectively, featuring sealing performance, widely applied in wire-to-wire, wire-to-device and wire-to-board applications.
You may provide us with OEM part number, terminal gender, sealing condition, mating side and other specifications, and we will match the most suitable automotive connectors for you.
6189-7691
6189-7609
6918-3295
2112058-1
13538370
12066304
3086B-1.5-11
3086G-1.5-21
3081A-2.1-21
7081-0.6-11
7081-0.6-21
7105-1.5-21
7081-2.2-11
7081-2.2-21
6918-3295
7081-2.3-4.8-11
8 Pin Automotive Connector Solutions

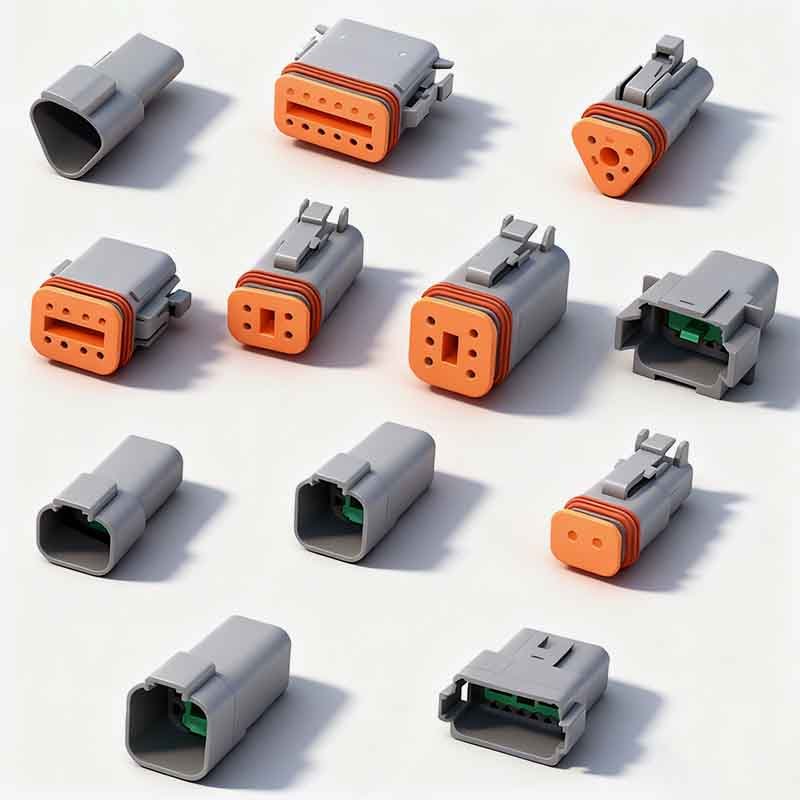

DEUTSCH DT Series Sealed Wire to Wire Connector

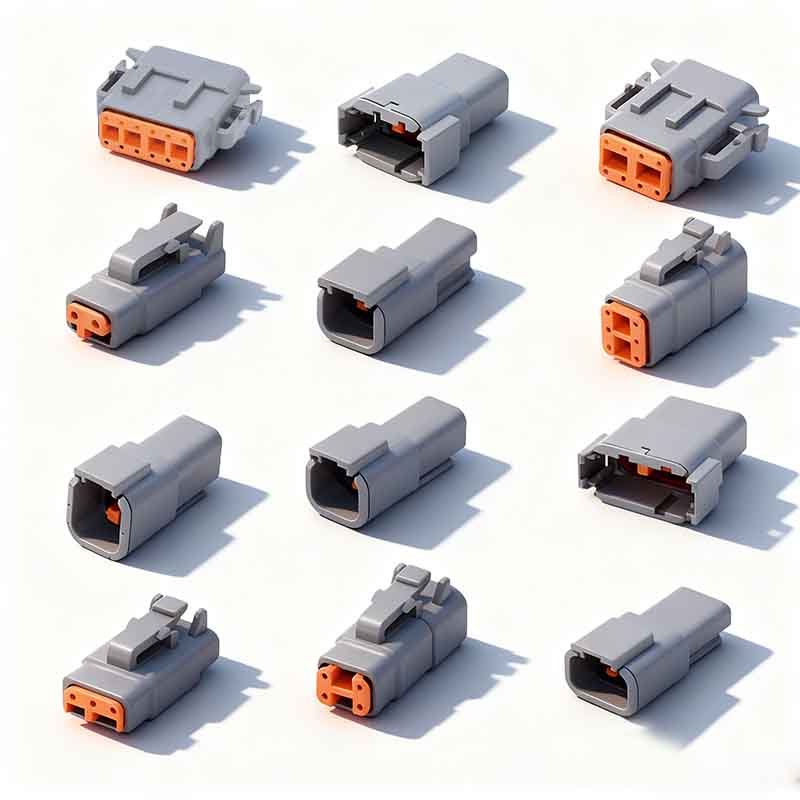

DEUTSCH DTM Series Offers an 8 position compact connection solution.

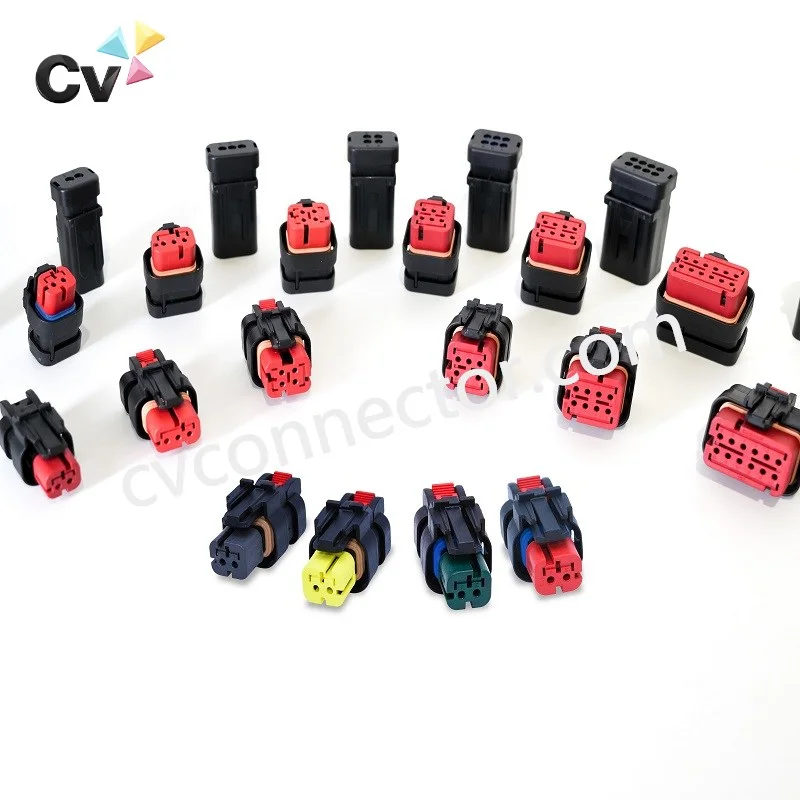

AMPSEAL Series Sealed Device & PCB Connections
Automotive Blade Connectors OEM Replacement & Vehicle Model Compatibility
8 Pin Automotive Connector Applications

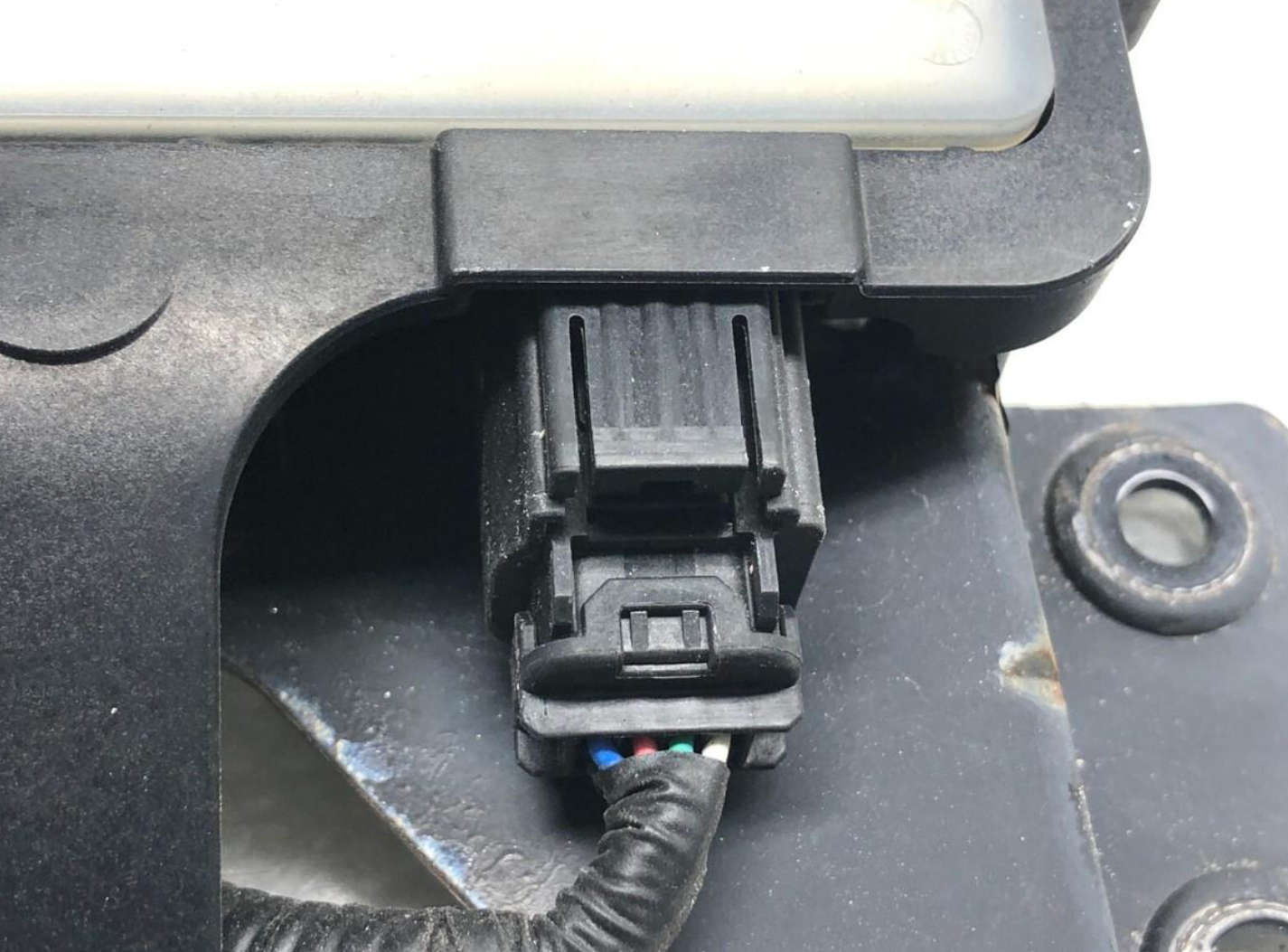

Rear Radar Systems

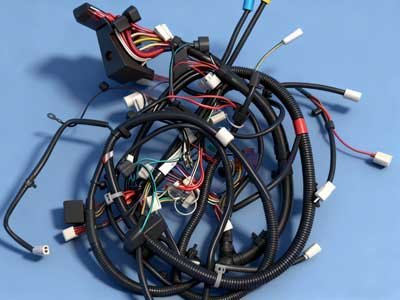

Automotive Wiring Harnesses
Vehicle Lighting

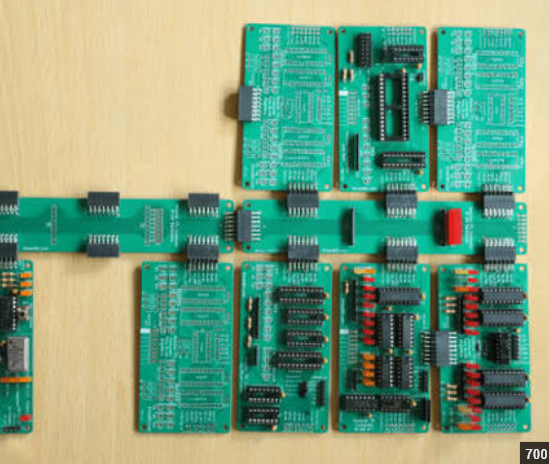

Electronic Modules & PCB Interfaces
What to Check Before Selecting an 8-Pin Connector
When selecting an 8-pin automotive connector, you need to confirm pin assignment, anti-mating key features, current and voltage ratings, sealing class, and locking systems. Ensure terminals are compatible with your wire gauge and that the part complies with automotive industry specifications. Having eight cavities does not mean connectors are interchangeable for vehicle harness assembly or repair.
- Pin Assignment
- Terminal Type
- Housing Dimensions
- Mating Interface
- Locking Structure
- Sealing & Temperature
Same Pin Count ≠ Same Connector Compatibility
| Product name | Auto Connector |
| Material | Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze. |
| Male or Female | Both male and female versions are available. |
| Number of Positions | 10 Pin |
| Sealed or Unsealed | Sealed |
| Color | Black，white |
| Operating Temperature range | -40℃~120℃ |
| Function | Used in automotive electrical wiring harnesses. |
| MOQ | Small order can be accepted. |
| Payment term | 30% deposit in advance,70% before shipment,100% TT in advance |
| Packaging | 100,200,300,500,1000，1500PCS per bag with label,export standard carton. |
| We can supply sample, OEM&ODM is welcome. |
Let us be your primary supplier.
We provide a variety of inspection reports, including Dimensional Inspection, Terminal Retention Test, Mating / Unmating Test, Sealing Test, Material Verification and Drawing Review.
Custom design services include: Custom Housing Design, Custom Pin Configuration, Custom Sealing Structure, Custom Mating Interface, Wire Harness Assembly, Prototype & Sample Support.
We provide: Datasheet, 2D Drawing, 3D CAD Model and OEM Cross Reference.
Frequently Asked Questions About 8-Pin Automotive Connectors
Yes, YUEQING QIYE AUTO PARTS CVCONNECTOR provides related terminals, seals and connector components.
An 8-pin automotive connector features eight terminal positions to establish electrical connections between vehicle components and wiring harnesses. Its practical functions vary according to the specific model.
Yes. Send the OEM part number, connector photos or technical drawings so the corresponding product can be checked
