Custom Wire to Board Connectors
CV, a professional custom connector manufacturer in China, provides one-stop personalized solutions and technical team support for connectors to industries including consumer electronics, industrial automation, automotive electronics, new energy, communications and smart home.
One-stop personalized solutions and team technical supportWe offer 100% high-quality customization to meet all your requirements.We have a high-quality, stable and long-term cooperative supply chain.Customizable pin pitch, pin count and materials are available, and we can meet the market access certification requirements such as UL/CSA/CE/RoHS/REACH.
Manufacturing of CV Wire to board connectors
We have export experience serving more than 1,000 overseas buyers, and customization is available for every single detail.
Including housing customization, we can carry out targeted customization for you centering on installation adaptability, environmental protection and structural limiting in accordance with your requirements.
For header / male and female terminals, customization is tailored primarily around your electrical parameters, connection methods and compatible wire types.
According to your wire types, we will select suitable materials for processing and customization based on your requirements for PCB pin definitions, wire gauge/core wire, total wire harness length, logo, heat shrink tube addition and adaptability to environmental application needs.
We also provide in-depth customization for the customer’s production processes and application scenarios in terms of the connector’s installation method, shape, combined use and matching accessories.
Such customizations are generally prioritized for modification and manufacturing based on existing molds.
If you need to manufacture products with new mold development, please contact us immediately – CV is your ultimate choice.
Custom Pin Count
For the pin count, we can provide you with a range of 2 to 500 pins, which is fully compatible with your equipment.
Custom Pin Pitch
For the pin pitch, we can provide a range of 0.8mm to 5.08mm, which is fully compatible with your equipment.
Current & Voltage (Customizable)
The current and voltage can be customized from 0.5A to 30A and 5V to 250V.
Harness Length & Mounting Holes Custom
The harness length and mounting hole positions are customizable, with the harness length ranging from approximately 0 to 5 meters.
Custom Compact Size for Small Spaces
If you are in urgent need of products adapted to small spaces, we can all provide you with compact sizes.
Custom Material & Environmental Performance
PA66/PC/LCP housing and copper alloy contacts (tin-plated/gold-plated) feature a temperature resistance of -40℃ to 125℃, IP65/IP67 waterproof rating, oil and corrosion resistance, and UL94 V-0 flame retardancy. They perform excellently in harsh environments and have an extremely long service life.
Our customized advantages
One on one engineering service, we provide technical simulation for you and keep you updated on the production progress 24 hours a day.
Fast sample making in 7~10 days (the lead time can be shortened to 5 days for rush orders); we offer technical guidance on installation, operation and maintenance, and provide free replacement or repair in case of quality problems.
With over 5,000 square meters of production workshops, we boast large production capacity and stable delivery, and support small-batch trial orders.
We provide a transparent quotation sheet with detailed breakdown of sample making costs; we guarantee 100% passing of all inspections before delivery, and issue inspection reports as well as relevant market access certifications.
Application fields
New Energy Vehicles (NEVs)
Industry
Heavy industry
Communication

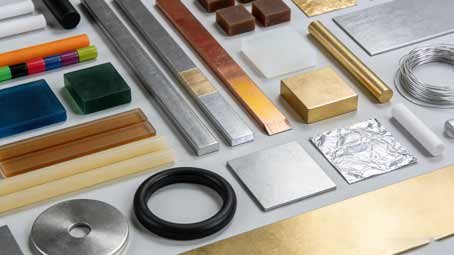

Materials for product customization and manufacturing
Base material: (Bronze (H62/H65), Phosphor Bronze (C5191/C5210), Beryllium Copper (C17200)
Surface coating: Tin plating, Gold plating, Nickel/gold plating
Shell material: PA66 + 30% GF / PBT + 30% GF / PA66 + 30% GF / PBT + 30% GF / PPA
Hook / Snap: PA66 + 30GF / PBT + 30GF
Metal fixing plate / terminal platform: SPCC/304
Waterproof sealing ring / wiring protection sleeve / insulation sleeve: VMQ / NBR / FKM / TPE / TPR / PVC
Epoxy resin glue / Hot melt glue
CV connector production process
CV uses advanced equipment to manufacture connectors. In addition, the manufacturing process involves a variety of techniques.
Integrated Injection Molding
Terminal Stamping Process
Integrated Interface Seal
Assembly and Wire Crimping
Sealing Ring Installation
Waterproof Testing
CV Connector Manufacturing Services, Production for Various Industries
Built-in Contact Seal
Military
Industry
Consumer Electronics
New Energy Vehicles (NEVs）
Industrial Control and Security
Transportation
Medical Equipment
Customization process
Requirement Submission → Submit drawings/specifications via email/online form
Solution Quotation → Professional team provides detailed proposal within 24 hours
Sample Development → Develop and deliver test samples within 7 days
Sample Confirmation → Adjust according to your test feedback until satisfaction
Mass Production → Arrange production after deposit payment, with production progress updates
Delivery & After-sales → Include complete inspection report, with 12-month warranty
Send Your Inquiry Today
If you need connectors and wiring harnesses, CV will be your ideal choice. Please send us your detailed requirements and we will provide you with a quote immediately.
