Superseal 1.0 Connectors
As a professional connector manufacturer, equip high-end materials with professional production processes, making them have a high protection grade and hold UL/CE certifications. Using our connectors can effectively reduce your mechanical failures and realize the maximization of mechanical benefits.
We support annual framework procurement, including bulk procurement, provide you with a suitable matching solution, and we are your ideal long-term partner.IP67, high temperature resistance, corrosion resistance, pressure and vibration resistance, and achieves multiple protection in harsh environments.Cable length /terminals/harness assembly, etc. can be customized on demand.One stop spare parts are available for your selection,Original equipment compatibility
Superseal 1.0 connectors manufacturer
AMP Superseal 1.0 Connectors are suitable for use in scenarios including trucks, buses, off-road vehicles, construction, agriculture, mining, emergency vehicles, forestry, recreation, marine, motorcycles, construction machinery, and others. Wire to board connectors and ECU applications
We provide a full range of accessories as well as alternative compatible accessories. Our connectors are equipped with 1.0mm contact pins, which can work normally under 15 ampere current, and are fully applicable to conductors of 0.5~1.25 square millimeters. The cavities have position configurations with 26, 34, 60 positions, and other specifications.
We offer personalized services, including the ability to add logos, specify pin spacing/quantity, and customize with different materials.
If you are not sure about the selection, contact our technical team for free consultation.

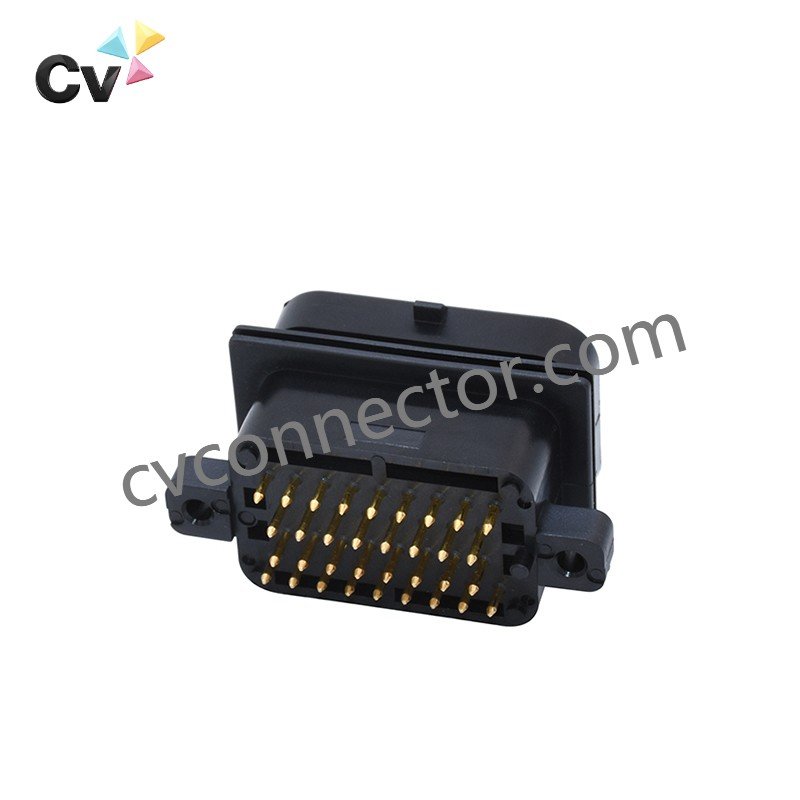

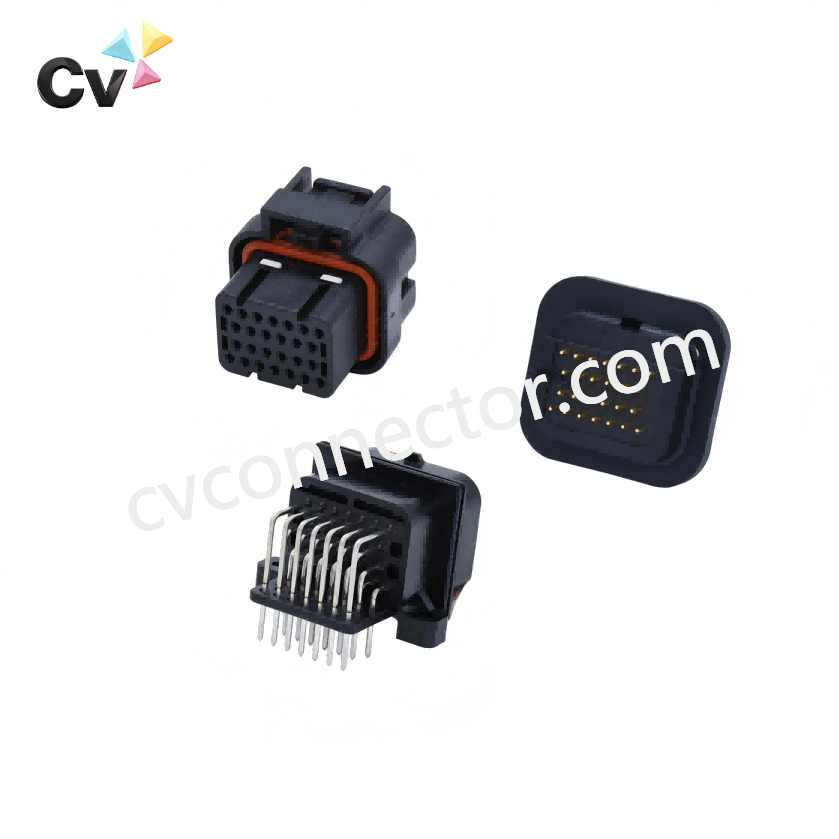

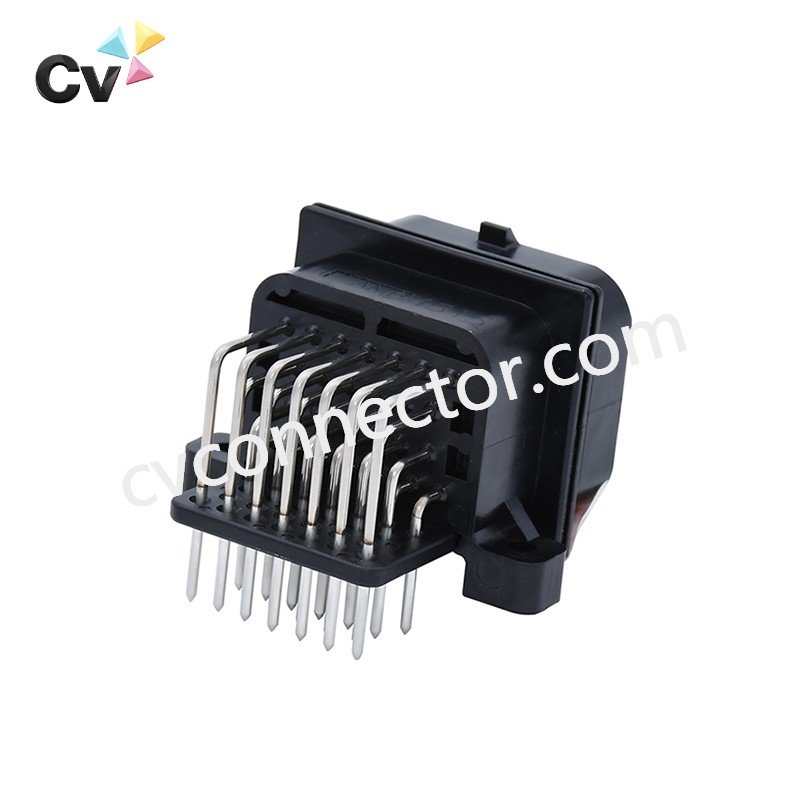

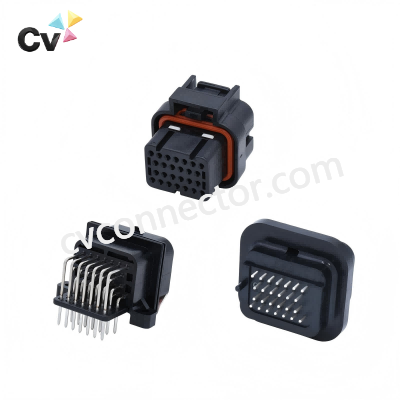

26 PIN OEM 3-1437290-7
26 PIN OEM 3-1437290-8
26 PIN OEM 1473416-1
26 PIN OEM 1473416-2
26 PIN OEM 1473712-1

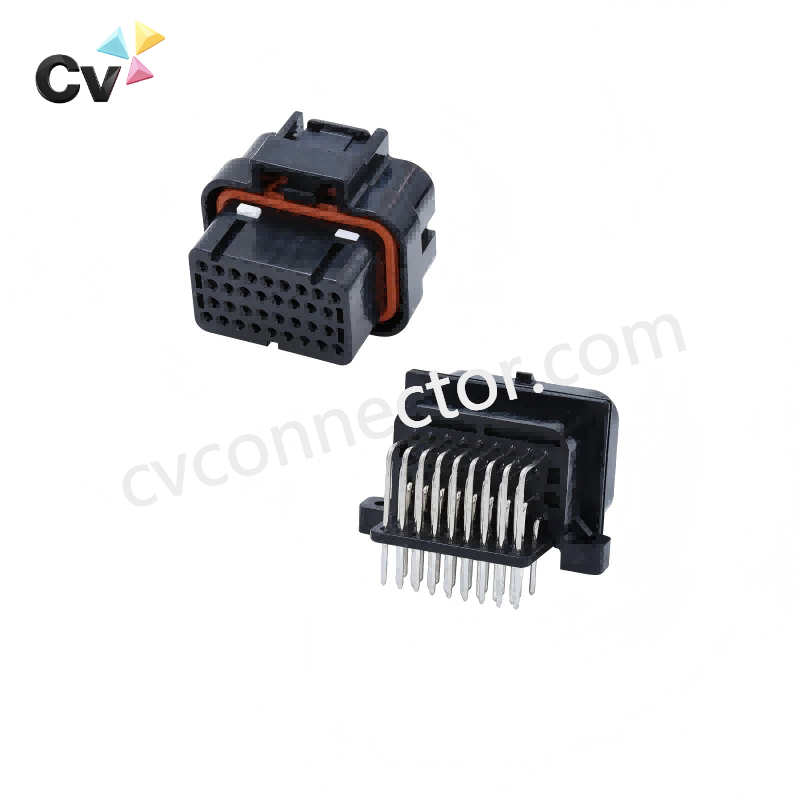

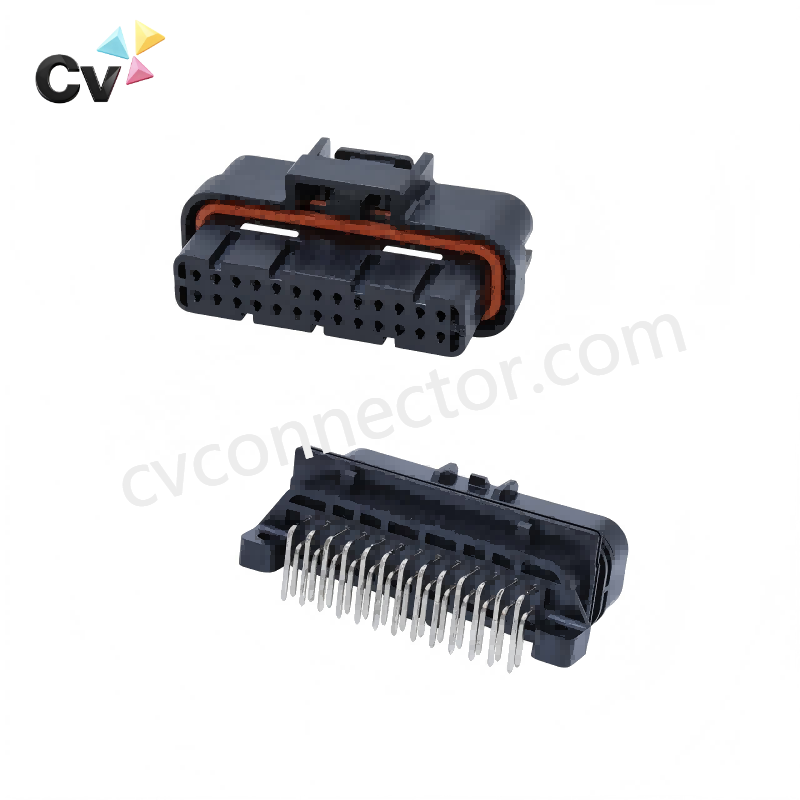

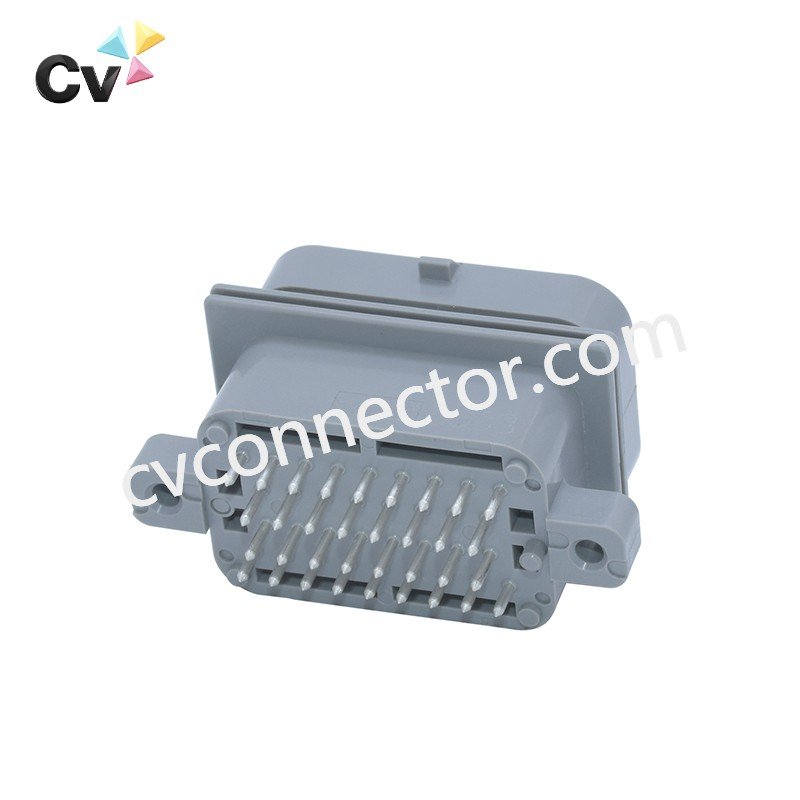

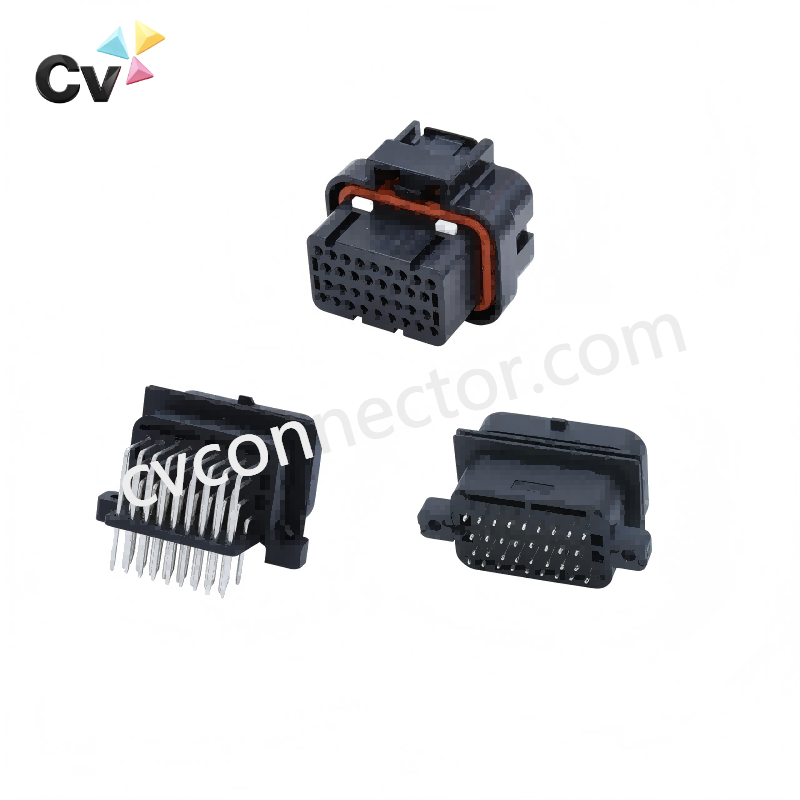

34 PIN OEM 4-14372907-0
34PIN OEM 4-14372907-1

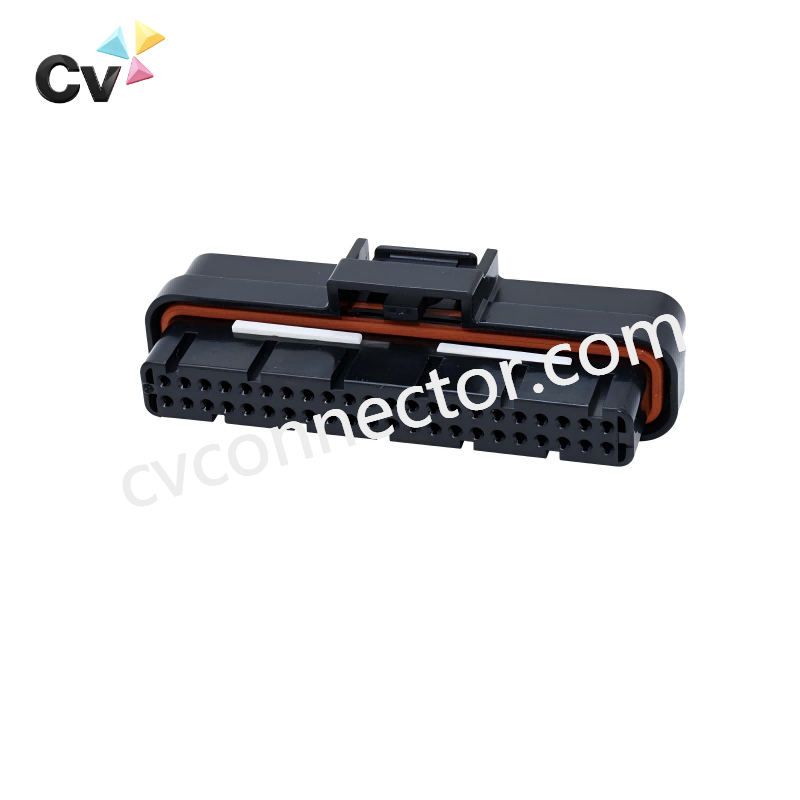

44 PIN OEM 137688-1

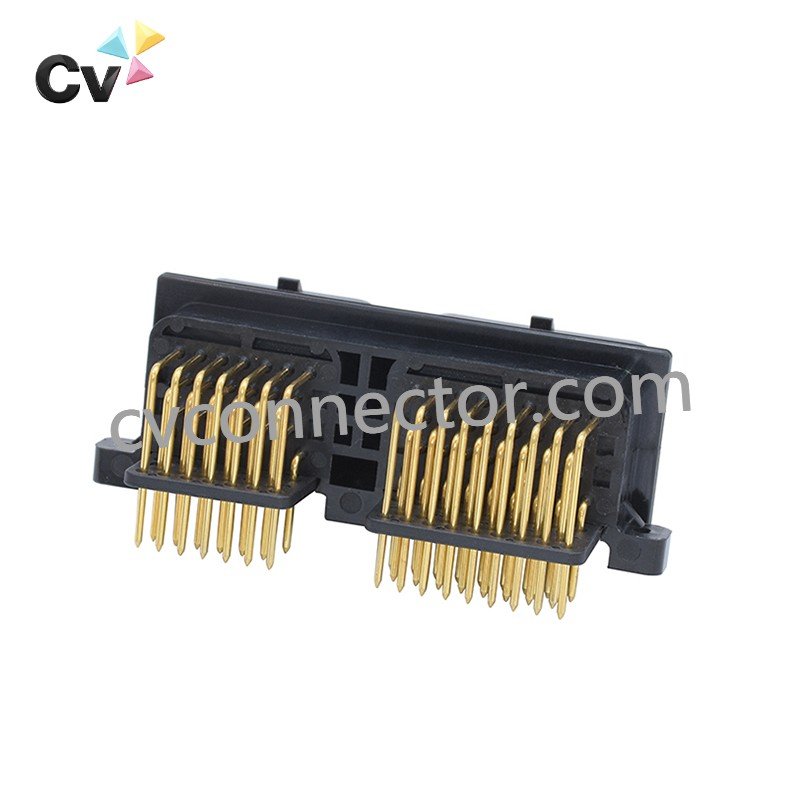

60 PIN OEM 6473427-1
60 PIN OEM 6473427-11
34 PIN OEM 2-6447232-4
34 PIN OEM 2-6447232-41
26 PIN OEM 2-6473423-2
34 PIN OEM 2-6437288-1
34 PIN OEM 2-6447232-3

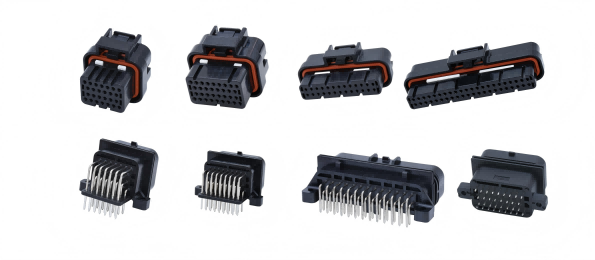

Advantages of AMPSEAL 1.0mm Connector
Sealing System: Silicone sealing gaskets are provided ex-factory, meeting the protection grade of IP67 and above. The wiring inlet is equipped with an integrated sealing grommet, forming a multiple sealing structure with the shell. It is also fitted with a TPA auxiliary part, which effectively ensures the sustainability of sealing performance. Features: No need for you to purchase separate sealing parts, which saves your installation procedures and reduces your material costs at the same time.
Lever Latch: Based on the lever principle, it achieves quick locking of the plug and the board end, features excellent vibration resistance and exerts an anti-loosening safety effect.
Hard Silver Plated Terminal Plug Features: The hardness reaches HV 120–150, with excellent electrical conductivity. The operating temperature range is -40°C~120°C, which can effectively protect your electronic products from the impact of harsh environments.
Bolt Fixed Flange: This connector is equipped with an in-built disc-shaped flange; the positions and quantity of pin holes comply with industry specifications, achieving precise alignment with the PCB flange. Bolts and nuts are locked on the mounting surface, no welding or drilling required, with excellent adaptability. It is compatible with 2.5mm/3mm center distances and supports PCB integration. It features a firm connection, with uniform force bearing at all positions; post-period maintenance is simple and operable by a single person.
Why Choose Us? – Solve Your Pain Points & Save Your Cost
Multiple production lines
The issue of delivery dates can be completely resolved.
Support OEM/ODM
We can produce based on the drawings provided, and all personalized services are available.Customized drawing with Decal, Frosted, Print are available as request
Small batch, large batch delivery
Small batch within 3~7 days, large batch depends on your quantity. We will arrange the appropriate logistics based on the actual quantity for you.
Brand Compatible Replacement
We offer line-to-board connectors that are compatible with well-known brands. The pin spacing, size and electrical parameters of these connectors are exactly the same as the original products. No modifications to your product design are required as these connectors can be directly replaced and used, which can reduce costs by 30% – 50%. Moreover, we also provide one-stop purchasing service for accessories for you.
Application of equipment components
Engine Compartment/Body System/Chassis Assembly/Control System/Sensing System
Auxiliary System/BMS (Battery Management System)/Electronic Control System/Operating System
Intelligent Module/Mining Vehicle/Marine Vessel/Fire/Ambulance Vehicle/Outdoor Equipment
Power System/Industrial Production Line/Warehousing Equipment
Superseal 1.0 Connectors: the Benefits Brought
IP67 sealing performance, integrated with TPA, CPA and lever for multiple protection and easy installation
Meets the electrical and mechanical requirements for applications such as ECU /sensor/ BMS, with compact PCB mounting space
The connector complies with the sealing standards of IEC 529 and DIN 40050 I.P 6.7 specifications
40°C to +125°C,1.0mm extremely narrow pitch (accuracy ± 0.05mm)
1 meter submerged for 30 minutes without leakage,
Equipped with functions to prevent terminal retraction and incorrect insertion
Application fields
Commercial Vehicles
Construction Machinery
Off Highway Machinery
New Energy Commercial Vehicles
Agricultural Machinery
Special Vehicles
Choose our advantages
The production workshop area has 8,000 square meters..
We have 15 production lines; no need to worry about delivery date issues.
Our annual production capacity reaches 80 million pieces.
The production in large batches with small quantities was completed ahead of your expected time.
One-stop AMP Superseal 1.0 Connectors manufacturing
If you need connectors and wiring harnesses, CV will be your ideal choice. Please send us your detailed requirements and we will provide you with a quote immediately.
